Amphenol RF 102-920-06

102-920-06 Amphenol RF
Amphenol RF

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-40°C ~ 125°C
Connector Style:
1.0/2.3
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
14 Weeks
Voltage Rating:
250 V
REACH Status:
REACH Affected
Includes:

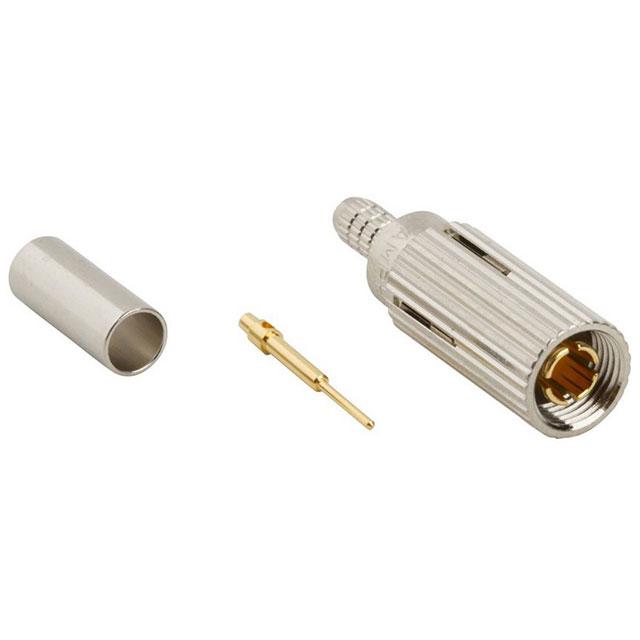

3 pcs - 1 Connector, 1 Contact, 1 Ferrule
edacadModel:
102-920-06 Models
Frequency - Max:
10 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/2632139
Impedance:
50 Ohms
Cable Group:
RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Package:
Bulk
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
102-920
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 102-920-06. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -40°c ~ 125°c operating temperature range. It comes in 1.0/2.3 connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 14 weeks standard lead time. Moreover, the product has a nominal 250 v voltage rating. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 10 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-179, 179a, 179b, 187, 187a, belden 9221, m17/94-rg179. It is shipped in bulk package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 102-920, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
102-920-06 Drawing(Product Drawings)
