Amphenol RF 122192-15RP

122192-15RP Amphenol RF
122192-15RP
Amphenol RF

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-65°C ~ 165°C
Connector Style:
RP-TNC
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.18dB
standardLeadTime:
14 Weeks
Voltage Rating:
500 V
REACH Status:
REACH Affected
Includes:

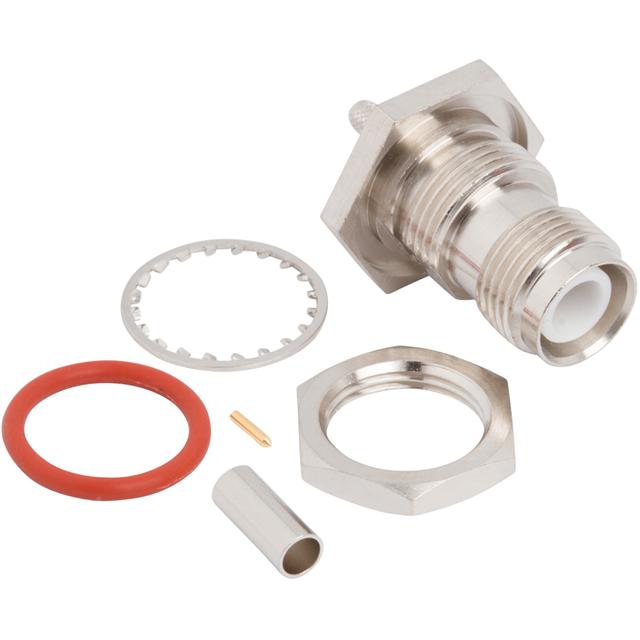

6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
edacadModel:
122192-15RP Models
Frequency - Max:
11 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/5042456
Impedance:
50 Ohms
Cable Group:
RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Package:
Bulk
Connector Type:
Jack, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Crimp
Base Product Number:
122192
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 122192-15RP. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The phosphor bronze material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in rp-tnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.18db of insertion loss. It has a long 14 weeks standard lead time. Moreover, the product has a nominal 500 v voltage rating. In addition, it is reach affected. The product is also supplied with 6 pcs - 1 connector, 1 contact, 1 ferrule, 1 gasket, 1 lockwasher, 1 nut. It maximum frequency is 11 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-174, 188, 188a, 316, lmr-100, m17/119-rg174. It is shipped in bulk package . jack, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. It is IP rated with ip67 - dust tight, waterproof. The product is available in panel mount configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates crimp contact terminals. Moreover, it corresponds to 122192, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
122192-15RP(Product Drawings)
