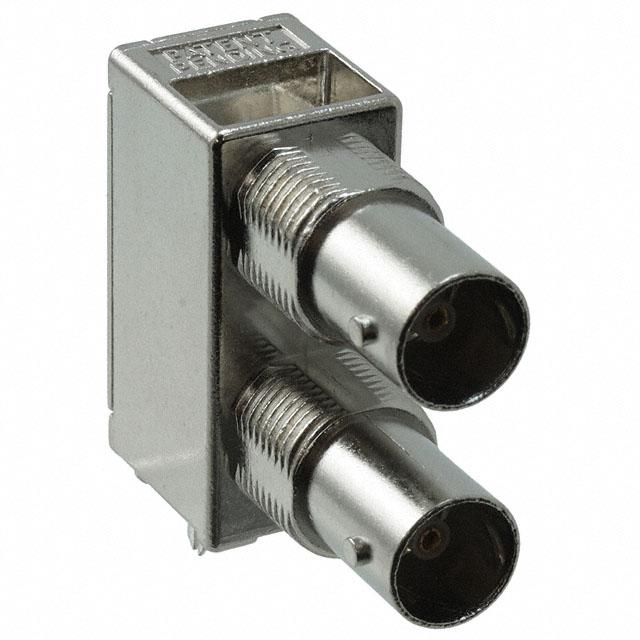

Amphenol RF 031-70507

031-70507 Amphenol RF
Amphenol RF

Product Information

Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-55°C ~ 85°C
Connector Style:
BNC
Body Finish:
Nickel
Dielectric Material:
Polypropylene (PP)
Insertion Loss:
0.2dB
standardLeadTime:
14 Weeks
Voltage Rating:
500 V
REACH Status:
REACH Affected
Includes:
-
edacadModel:
031-70507 Models
Frequency - Max:
1 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/4037248
Impedance:
75 Ohms
Cable Group:
-
Package:
Tray
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
2
Body Material:
Zinc Die Cast
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
031-70
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 031-70507. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The phosphor bronze material is utilised for designing its center contacts. The product has -55°c ~ 85°c operating temperature range. It comes in bnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polypropylene (pp) dielectric material. Allows 0.2db of insertion loss. It has a long 14 weeks standard lead time. Moreover, the product has a nominal 500 v voltage rating. In addition, it is reach affected. It maximum frequency is 1 ghz. It has an integral silver housing colour. It has an impedance value of 75 ohms. It is shipped in tray package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 2 number of ports. The product's body is nicely designed from zinc die cast materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The splendid features of the product include board lock. The product is available in panel mount, through hole, right angle configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 031-70, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
31-70507(Product Drawings)
