Amphenol RF 172142
Product Information
Body Plating:
White Bronze
Mating Type:
Threaded
Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Straight
Cable Type:
RG142/U, RG223/U, RG400/U, RG55/U
Coaxial Connector Type:
N Connector
Contact Plating:
Gold
Termination Method:
Crimp
Operating Frequency:
11GHz
Impedance:
50Ω
Contact Material:
Brass
Maximum Operating Temperature:
+165°C
Minimum Operating Temperature:
-65°C
Size:
Standard
Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
N Type
Body Finish:
White Bronze
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.15dB
standardLeadTime:
6 Weeks
Voltage Rating:
1500 V
REACH Status:
REACH Affected
Includes:
3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
11 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-55, 142, 223, 400
Package:
Bag
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Crimp
Base Product Number:
1721
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 172142 on website for other similar products.
We accept all major payment methods for all products including ET18662660. Please check your shopping cart at the time of order.
You can order Amphenol RF brand products with 172142 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol RF 172142. You can also check on our website or by contacting our customer support team for further order details on Amphenol RF 172142.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18662660 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol RF" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18662660.
Yes. We ship 172142 Internationally to many countries around the world.

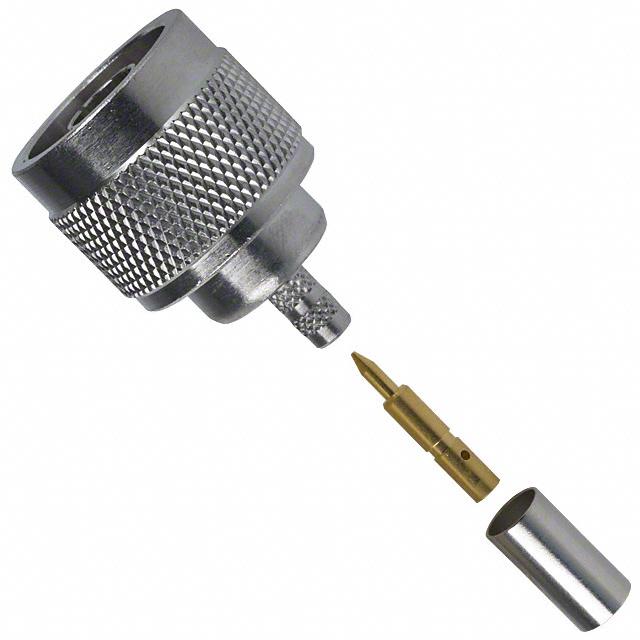

This is manufactured by Amphenol RF. The manufacturer part number is 172142. The body is white bronze plated for adorable look and strength. It is a type of threaded mating. The product is available in cable mount configuration. In addition, male is the available "Gender" of the product. It has straight body orientation. It is a typical rg142/u, rg223/u, rg400/u, rg55/u cable. This coaxial connector is a type of n connector. The high-quality gold is used as contact plating material. It allows crimp termination method. Furthermore, the product has 11ghz operating frequency range. It has an impedance value of 50ω. The product is made from sturdy brass materials. It has a maximum operating temperature of +165°c. Whereas, the minimum operating temperature of the product is -65°c. The product is available in standard size. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in n type connector style. The body is galvanized with nice finishing of white bronze. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.15db of insertion loss. It has a long 6 weeks standard lead time. Moreover, the product has a nominal 1500 v voltage rating. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 11 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-55, 142, 223, 400. It is shipped in bag package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates crimp contact terminals. Moreover, it corresponds to 1721, a base product number of the product. The product is designated with the ear99 code number.
