Amphenol RF 132289
Product Information
Polarity:
Normal
Body Plating:
Gold
Mating Type:
Threaded
Mounting Type:
Edge Mount
Gender:
Female
Body Orientation:
Straight
Coaxial Connector Type:
SMA Connector
Bulkhead:
Yes
Contact Plating:
Gold
Termination Method:
Solder
Operating Frequency:
18GHz
Impedance:
50Ω
Contact Material:
Beryllium Copper
Maximum Operating Temperature:
+165°C
Minimum Operating Temperature:
-65°C
Size:
Standard
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMA
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
8 Weeks
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:

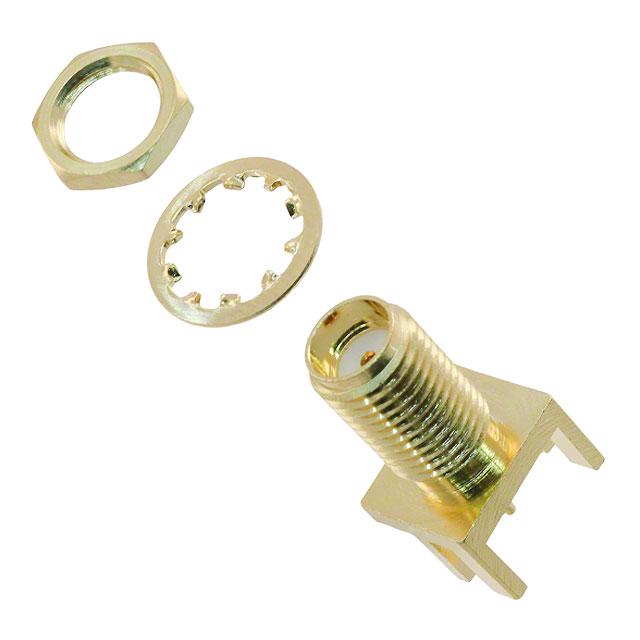

3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
edacadModel:
132289 Models
Frequency - Max:
18 GHz
Housing Color:
Gold
edacadModelUrl:
/en/models/1989875
Impedance:
50 Ohms
Cable Group:
-
Package:
Bag
Connector Type:
Receptacle, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Board Edge, End Launch; Panel Mount
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
1322
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 132289 on website for other similar products.
We accept all major payment methods for all products including ET18629157. Please check your shopping cart at the time of order.
You can order Amphenol RF brand products with 132289 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol RF 132289. You can also check on our website or by contacting our customer support team for further order details on Amphenol RF 132289.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18629157 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol RF" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18629157.
Yes. We ship 132289 Internationally to many countries around the world.
This is manufactured by Amphenol RF. The manufacturer part number is 132289. While providing normal polarity. The body is gold plated for adorable look and strength. It is a type of threaded mating. The product is available in edge mount configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. This coaxial connector is a type of sma connector. It has a bulkhead yes . The high-quality gold is used as contact plating material. It allows solder termination method. Furthermore, the product has 18ghz operating frequency range. It has an impedance value of 50ω. The product is made from sturdy beryllium copper materials. It has a maximum operating temperature of +165°c. Whereas, the minimum operating temperature of the product is -65°c. The product is available in standard size. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in sma connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 8 weeks standard lead time. It has a solder shield termination. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 lockwasher, 1 nut. It maximum frequency is 18 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. It is shipped in bag package . receptacle, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in board edge, end launch; panel mount configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 1322, a base product number of the product. The product is designated with the ear99 code number.
