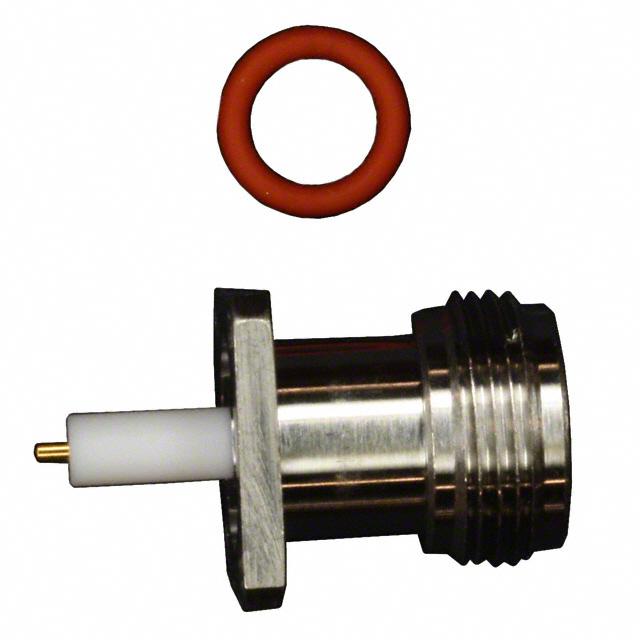

Amphenol RF 172117
Product Information
Body Plating:
Nexcote Plated
Mounting Type:
Flange Mount
Gender:
Female
Body Orientation:
Straight
Termination Method:
Solder
Coaxial Connector Type:
SMA Connector
Contact Plating:
Gold
Series:
N-Type
Operating Frequency:
11GHz
Impedance:
50Ω
Contact Material:
Phosphor Bronze
Maximum Operating Temperature:
+165°C
Minimum Operating Temperature:
-65°C
Mating Type:
Threaded
Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Flange
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-65°C ~ 165°C
Connector Style:
N Type
Body Finish:
White Bronze
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.15dB
standardLeadTime:
6 Weeks
Voltage Rating:
1500 V
REACH Status:
REACH Affected
Includes:
2 pcs - 1 Connector, 1 Gasket
Frequency - Max:
11 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
-
Package:
Bag
Connector Type:
Receptacle, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
Weatherproof
Features:
Extended Insulation
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
1721
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 172117 on website for other similar products.
We accept all major payment methods for all products including ET18629081. Please check your shopping cart at the time of order.
You can order Amphenol RF brand products with 172117 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol RF 172117. You can also check on our website or by contacting our customer support team for further order details on Amphenol RF 172117.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18629081 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol RF" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18629081.
Yes. We ship 172117 Internationally to many countries around the world.
This is manufactured by Amphenol RF. The manufacturer part number is 172117. The body is nexcote plated plated for adorable look and strength. The product is available in flange mount configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. This coaxial connector is a type of sma connector. The high-quality gold is used as contact plating material. The product n-type, is a highly preferred choice for users. Furthermore, the product has 11ghz operating frequency range. It has an impedance value of 50ω. The product is made from sturdy phosphor bronze materials. It has a maximum operating temperature of +165°c. Whereas, the minimum operating temperature of the product is -65°c. It is a type of threaded mating. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes flange. The phosphor bronze material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in n type connector style. The body is galvanized with nice finishing of white bronze. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.15db of insertion loss. It has a long 6 weeks standard lead time. Moreover, the product has a nominal 1500 v voltage rating. In addition, it is reach affected. The product is also supplied with 2 pcs - 1 connector, 1 gasket. It maximum frequency is 11 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. It is shipped in bag package . receptacle, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. It is IP rated with weatherproof. The splendid features of the product include extended insulation. The product is available in panel mount configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 1721, a base product number of the product. The product is designated with the ear99 code number.
