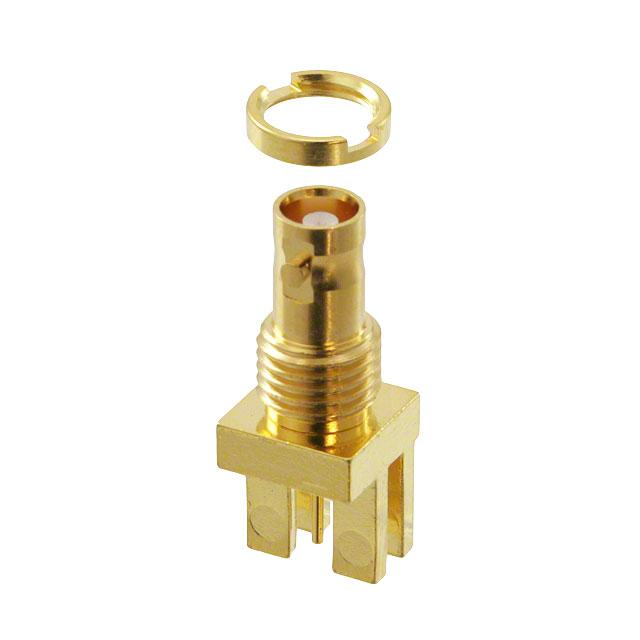

Winchester Interconnect 361EHD704

361EHD704 Winchester Interconnect
Winchester Interconnect

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-
Connector Style:
BNC, HD
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.2dB
Center Contact Plating:
Gold
title:
361EHD704
Shield Termination:
Solder
Includes:
-
Frequency - Max:
1 GHz
Housing Color:
Gold
Impedance:
75 Ohms
Cable Group:
-
Voltage Rating:
500 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Board Edge, End Launch; Panel Mount
Series:
E-Snap™
Packaging:
Tray
Contact Termination:
Solder
Base Product Number:
361EHD7
ECCN:
EAR99
Checking for live stock

This is manufactured by Winchester Interconnect. The manufacturer part number is 361EHD704. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The product's mounting feature includes bulkhead - front side nut. The beryllium copper material is utilised for designing its center contacts. It comes in bnc, hd connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.2db of insertion loss. The center contact is plated with a [Center Contract Plating]. It has a solder shield termination. It maximum frequency is 1 ghz. It has an integral gold housing colour. It has an impedance value of 75 ohms. Moreover, the product has a nominal 500 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in board edge, end launch; panel mount configuration. The product e-snap™, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to 361ehd7, a base product number of the product. The product is designated with the ear99 code number.
