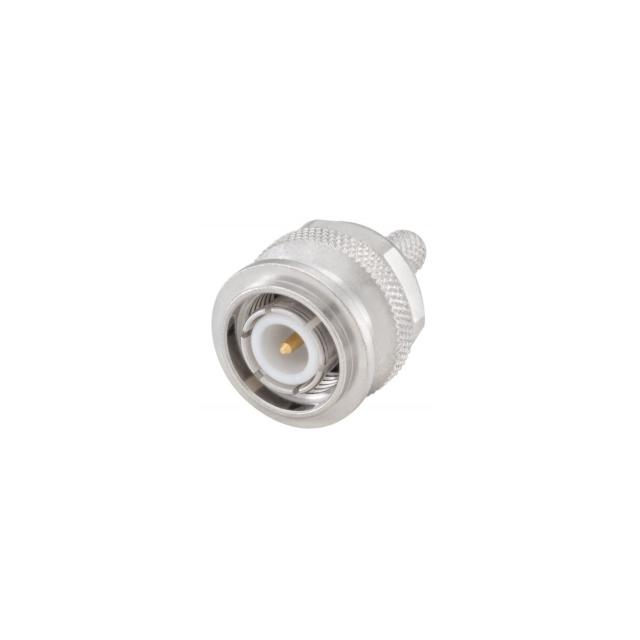

Rosenberger 56S107-106N5
Product Information
Body Plating:
Flash White Bronze
Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Straight
Cable Type:
Flexible
Coaxial Connector Type:
TNC Connector
Contact Plating:
Nickel/White Bronze
Termination Method:
Crimp
Operating Frequency:
0 to 10GHz
Impedance:
50Ω
Contact Material:
Copper Zinc Alloy
Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
TNC
Body Finish:
White Bronze
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Voltage Rating:
500 V
REACH Status:
REACH Affected
Includes:
3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
10 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-58C, 141
Package:
Bulk
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Contact Termination:
Crimp
Base Product Number:
56S107
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 56S107-106N5 on website for other similar products.
We accept all major payment methods for all products including ET15991235. Please check your shopping cart at the time of order.
You can order Rosenberger brand products with 56S107-106N5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Rosenberger 56S107-106N5. You can also check on our website or by contacting our customer support team for further order details on Rosenberger 56S107-106N5.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET15991235 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Rosenberger" products on our website by using Enrgtech's Unique Manufacturing Part Number ET15991235.
Yes. We ship 56S107-106N5 Internationally to many countries around the world.
This is manufactured by Rosenberger. The manufacturer part number is 56S107-106N5. The body is flash white bronze plated for adorable look and strength. The product is available in cable mount configuration. In addition, male is the available "Gender" of the product. It has straight body orientation. It is a typical flexible cable. This coaxial connector is a type of tnc connector. The high-quality nickel/white bronze is used as contact plating material. It allows crimp termination method. Furthermore, the product has 0 to 10ghz operating frequency range. It has an impedance value of 50ω. The product is made from sturdy copper zinc alloy materials. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in tnc connector style. The body is galvanized with nice finishing of white bronze. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 500 v voltage rating. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 10 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-58c, 141. It is shipped in bulk package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. It also incorporates crimp contact terminals. Moreover, it corresponds to 56s107, a base product number of the product. The product is designated with the ear99 code number.
