HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-25°C ~ 110°C

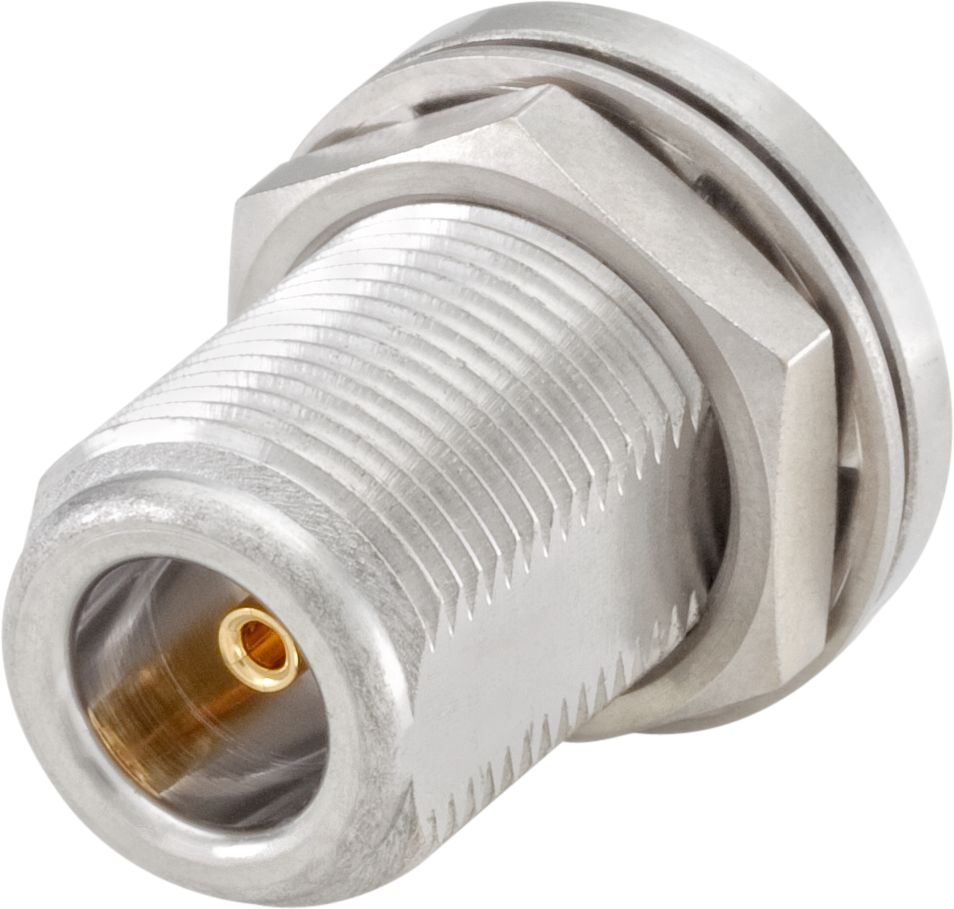

Connector Style:
N Type
Body Finish:
White Bronze
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.05dB
Center Contact Plating:
Gold
title:
53K504-272N5
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Frequency - Max:
11 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-402 (.141" Semi Rigid)
Voltage Rating:
500 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Series:
-
Packaging:
Bulk
Contact Termination:
Solder
Base Product Number:
53K504
ECCN:
EAR99
Termination Type:
Solder
Body Plating:
Flash White Bronze over Silver
Orientation:
Straight
Minimum Operating Temperature:
50°C
Series:
53K504
Cable Type:
Coaxial
Contact Gender:
Female
Coaxial Connector Type:
SMA
Bulkhead:
Yes
Standards/Approvals:
CECC 22210, IEC 60529 RoHS, IEC 61169-16, MIL-STD-202, MIL-PRF-39012
Contact Plating:
Gold Plated
Contact Material:
Brass
Operating Frequency:
DC to 11 GHz
Impedance:
50Ω
Product Type:
Coaxial Connector
Connector Gender:
Female
Maximum Operating Temperature:
110°C
Mount Type:
Bulkhead
