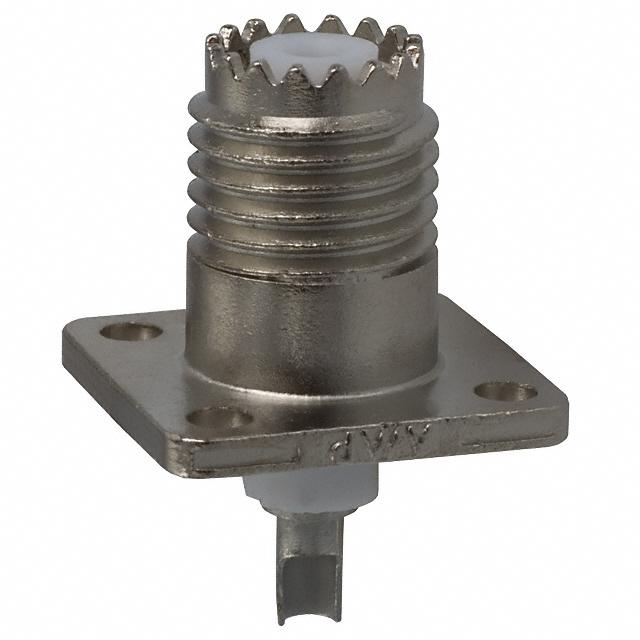

TE Connectivity AMP Connectors 226601-1

226601-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
RoHS non-compliant
Mounting Feature:
Flange
Center Contact Material:
Brass
Operating Temperature:
-55°C ~ 85°C
Connector Style:
UHF, Mini
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Tin
Voltage Rating:
335 V
REACH Status:
Vendor Undefined
Includes:
-
Frequency - Max:
2 GHz
Housing Color:
Silver
Impedance:
Non-Constant
Cable Group:
-
Package:
Bulk
Connector Type:
Receptacle, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Zinc
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
Extended Insulation
Mounting Type:
Panel Mount
Series:
-
Contact Termination:
Solder Cup
Base Product Number:
226601
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 226601-1. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs non-compliant. The product's mounting feature includes flange. The brass material is utilised for designing its center contacts. The product has -55°c ~ 85°c operating temperature range. It comes in uhf, mini connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 335 v voltage rating. In addition, it is vendor undefined. It maximum frequency is 2 ghz. It has an integral silver housing colour. It has an impedance value of non-constant. It is shipped in bulk package . receptacle, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from zinc materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The splendid features of the product include extended insulation. The product is available in panel mount configuration. It also incorporates solder cup contact terminals. Moreover, it corresponds to 226601, a base product number of the product. The product is designated with the ear99 code number.
