Rosenberger 56K607-106N5
Product Information
Body Plating:
Flash White Bronze
Mounting Type:
Cable Mount
Gender:
Female
Body Orientation:
Straight
Cable Type:
Flexible
Bulkhead:
Yes
Contact Plating:
Nickel/White Bronze
Termination Method:
Crimp
Operating Frequency:
0 → 10GHz
Impedance:
50Ω
Contact Material:
Copper Zinc Alloy
Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
TNC
Body Finish:
White Bronze
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Voltage Rating:
500 V
Includes:

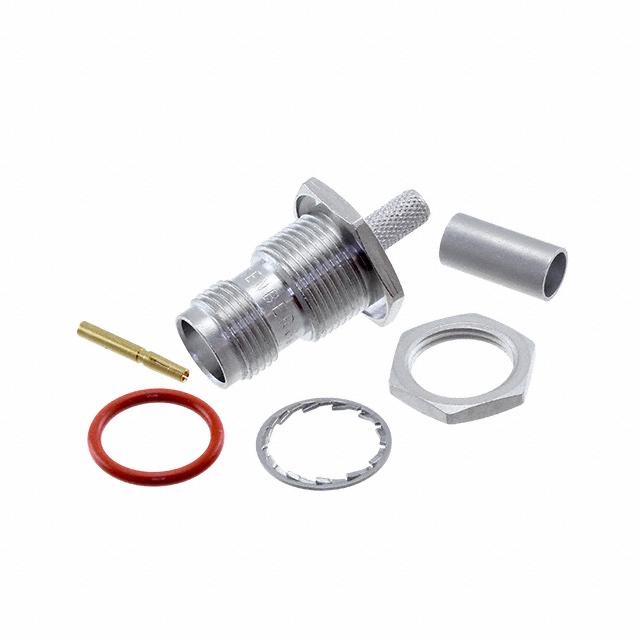

3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Frequency - Max:
10 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-58C, 141
Package:
Bulk
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
-
Contact Termination:
Crimp
Base Product Number:
56K607
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 56K607-106N5 on website for other similar products.
We accept all major payment methods for all products including ET13914344. Please check your shopping cart at the time of order.
You can order Rosenberger brand products with 56K607-106N5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Rosenberger 56K607-106N5. You can also check on our website or by contacting our customer support team for further order details on Rosenberger 56K607-106N5.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13914344 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Rosenberger" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13914344.
Yes. We ship 56K607-106N5 Internationally to many countries around the world.
This is manufactured by Rosenberger. The manufacturer part number is 56K607-106N5. The body is flash white bronze plated for adorable look and strength. The product is available in cable mount configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. It is a typical flexible cable. It has a bulkhead yes . The high-quality nickel/white bronze is used as contact plating material. It allows crimp termination method. Furthermore, the product has 0 → 10ghz operating frequency range. It has an impedance value of 50ω. The product is made from sturdy copper zinc alloy materials. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The product's mounting feature includes bulkhead - front side nut. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in tnc connector style. The body is galvanized with nice finishing of white bronze. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 500 v voltage rating. The product is also supplied with 3 pcs - 1 connector, 1 lockwasher, 1 nut. It maximum frequency is 10 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-58c, 141. It is shipped in bulk package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in panel mount configuration. It also incorporates crimp contact terminals. Moreover, it corresponds to 56k607, a base product number of the product. The product is designated with the ear99 code number.
