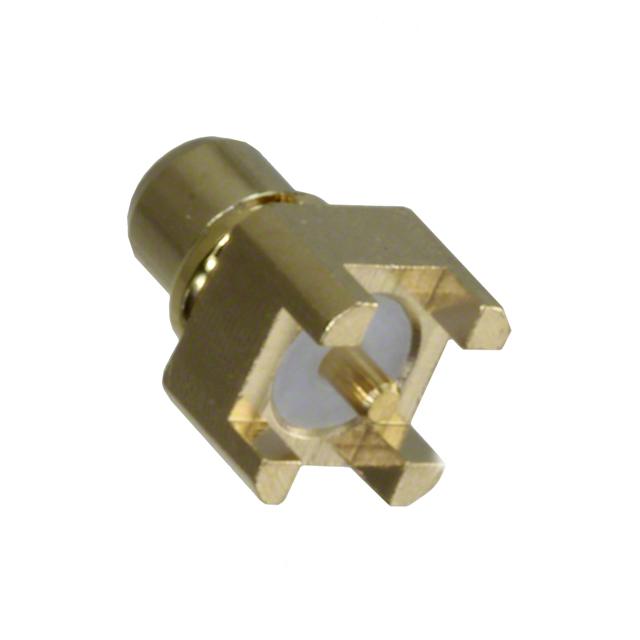

Samtec Inc. MMCX-P-P-H-ST-SM1

MMCX-P-P-H-ST-SM1 Samtec Inc.
MMCX-P-P-H-ST-SM1
Samtec Inc.

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 125°C
Connector Style:
MMCX
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
6 Weeks
title:
MMCX-P-P-H-ST-SM1
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:
-
edacadModel:
MMCX-P-P-H-ST-SM1 Models
Frequency - Max:
6 GHz
Housing Color:
Gold
edacadModelUrl:
/en/models/6678453
Impedance:
50 Ohms
Cable Group:
-
Voltage Rating:
500 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
-
Center Contact Plating:
Gold
Packaging:
Tray
Contact Termination:
Solder
Base Product Number:
MMCX-P
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is MMCX-P-P-H-ST-SM1. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -65°c ~ 125°c operating temperature range. It comes in mmcx connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 6 weeks standard lead time. It has a solder shield termination. In addition, it is reach affected. It maximum frequency is 6 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. Moreover, the product has a nominal 500 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. The product is available in surface mount configuration. The center contact is plated with a [Center Contract Plating]. In addition, tray is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to mmcx-p, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
MMCX Datasheet(Datasheets)
pdf icon
50 Ohm MMCX Jack or Plug, Surface Mount(Datasheets)
pdf icon
MMCX-P-P-H-ST-SM1 Drawing(Product Drawings)
