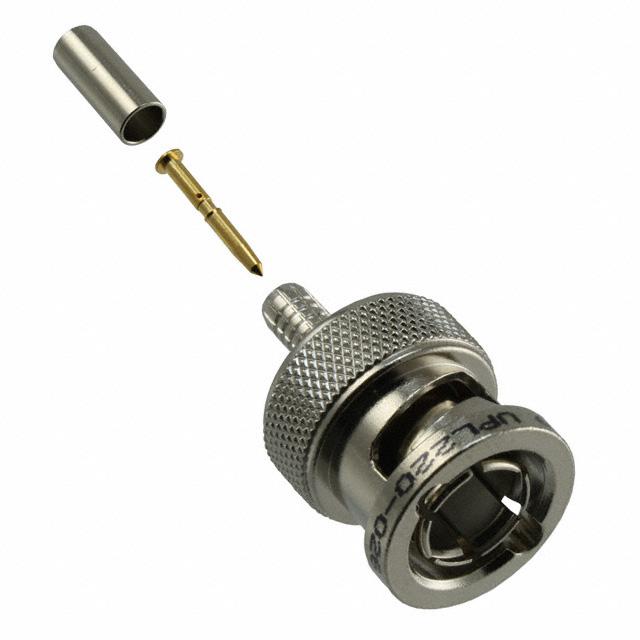

Cinch Connectivity Solutions Trompeter UPL220-026/T50

UPL220-026-T50 Cinch Connectivity Solutions Trompeter UPL220-026/T50
Cinch Connectivity Solutions Trompeter

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
BNC
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
11 Weeks
Shield Termination:
Crimp
REACH Status:
REACH Affected
Includes:
2 pcs - 1 Connector, 1 Contact
Frequency - Max:
4 GHz
Housing Color:
Silver
Impedance:
75 Ohms
Cable Group:
735A
Voltage Rating:
500 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
220
Center Contact Plating:
Gold
Packaging:
Tray
Contact Termination:
Crimp
Base Product Number:
UPL220
ECCN:
EAR99
Checking for live stock

This is manufactured by Cinch Connectivity Solutions Trompeter. The manufacturer part number is UPL220-026/T50. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in bnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 11 weeks standard lead time. It has a crimp shield termination. In addition, it is reach affected. The product is also supplied with 2 pcs - 1 connector, 1 contact. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 75 ohms. Cable Group Options: 735a. Moreover, the product has a nominal 500 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. The product is available in free hanging (in-line) configuration. The product 220, is a highly preferred choice for users. The center contact is plated with a [Center Contract Plating]. In addition, tray is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to upl220, a base product number of the product. The product is designated with the ear99 code number.
