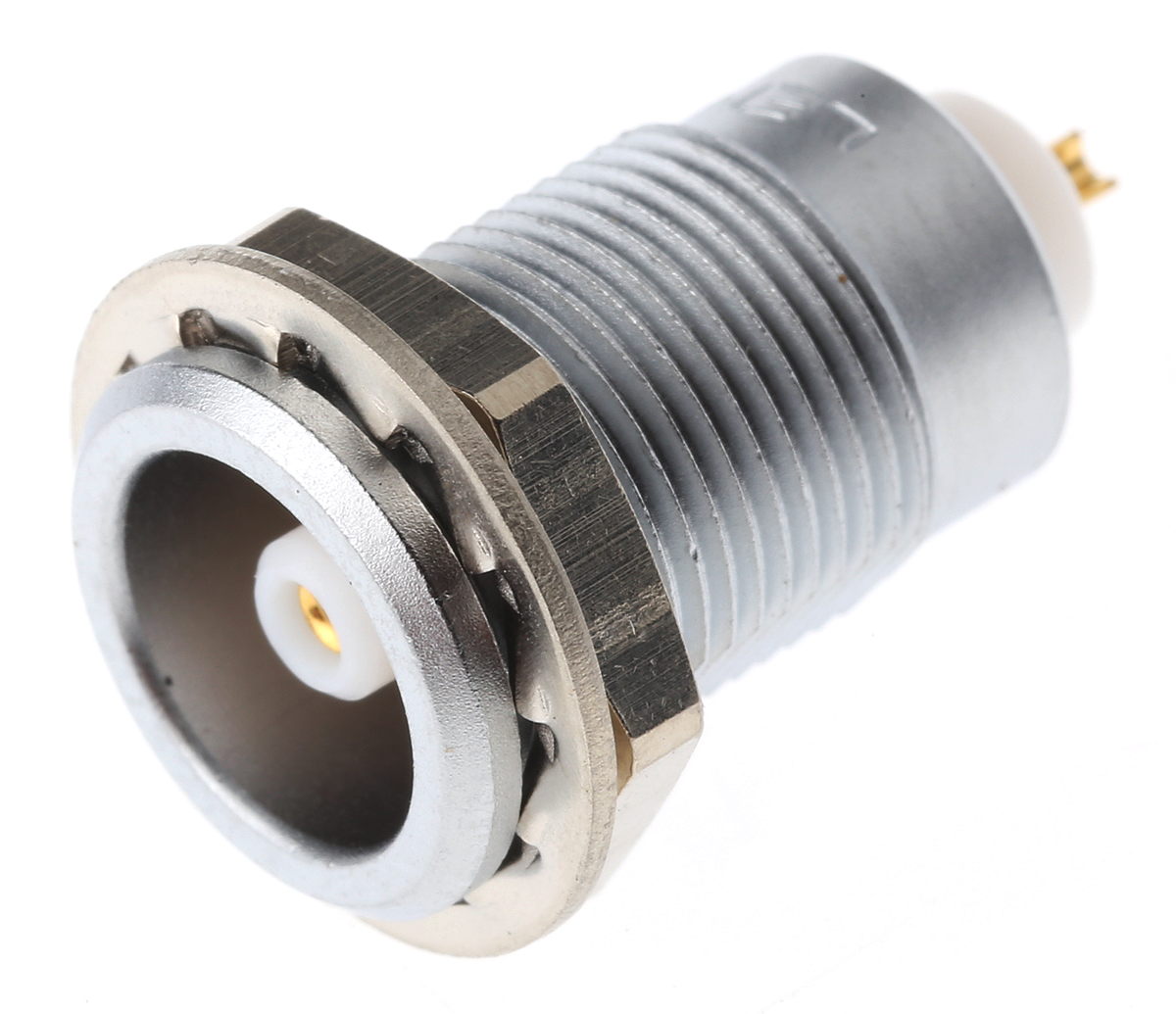

LEMO ERN.0S.250.CTL
Product Information
Current Rating:
6.0A
Minimum Operating Temperature:
-55°C
Mounting Type:
Panel Mount
IP Rating:
IP50
Series:
0S
Body Orientation:
Straight
Termination Method:
Solder
Contact Gender:
Female
Housing Material:
Brass
Plug/Socket:
Socket
Contact Plating:
Nickel
Shell Size:
0
Number of Contacts:
1
Maximum Operating Temperature:
+250°C
Contact Material:
Brass
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Rear Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-55°C ~ 250°C
Connector Style:
Coaxial
Body Finish:
Chrome
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
18 Weeks
Shield Termination:
Solder
REACH Status:
REACH Unaffected
Includes:
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-122, 174, 174A, 178B, 188A, 196A, 316B
Package:
Bulk
Connector Type:
Receptacle, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Push-Pull
Mating Cycles:
1000
Ingress Protection:
IP50 - Dust Protected
Features:
-
Mounting Type:
Panel Mount
Series:
0S
Center Contact Plating:
Gold
Contact Termination:
Solder Cup
Base Product Number:
ERN.0S
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ERN.0S.250.CTL on website for other similar products.
We accept all major payment methods for all products including ET10615790. Please check your shopping cart at the time of order.
You can order LEMO brand products with ERN.0S.250.CTL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of LEMO ERN.0S.250.CTL. You can also check on our website or by contacting our customer support team for further order details on LEMO ERN.0S.250.CTL.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10615790 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "LEMO" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10615790.
Yes. We ship ERN.0S.250.CTL Internationally to many countries around the world.
This is manufactured by LEMO. The manufacturer part number is ERN.0S.250.CTL. The product has a current rating of 6.0a. Whereas, the minimum operating temperature of the product is -55°c. The product is available in panel mount configuration. It is IP rated with ip50. The product 0s, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. This female contact is widely suited for specific applications. The product also features robust brass housing material. It comprises a socket. The high-quality nickel is used as contact plating material. The shell has 0 size. The product contains 1 contacts. It has a maximum operating temperature of +250°c. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - rear side nut. The beryllium copper material is utilised for designing its center contacts. The product has -55°c ~ 250°c operating temperature range. It comes in coaxial connector style. The body is galvanized with nice finishing of chrome. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 18 weeks standard lead time. It has a solder shield termination. In addition, it is reach unaffected. The product is also supplied with 3 pcs - 1 connector, 1 lockwasher, 1 nut. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-122, 174, 174a, 178b, 188a, 196a, 316b. It is shipped in bulk package . receptacle, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, push-pull is the Fastening Type of the product. It provides best efficiency with mating cycles of 1000. It is IP rated with ip50 - dust protected. The center contact is plated with a [Center Contract Plating]. It also incorporates solder cup contact terminals. Moreover, it corresponds to ern.0s, a base product number of the product. The product is designated with the ear99 code number.
