Capacitance:
100pF/m
Terminated/Unterminated:
Unterminated
CPR Certification:
Eca
Outer Diameter:
4.95mm
Attenuation:
79.2, 10.6 dB/100m @ 50MHz, 15.1 dB/100m @ 100MHz, 23.1 dB/100m @ 230MHz, 3.3 dB/100m @ 5MHz, 30.7 dB/100m @ 400MHz, 44.1 dB/100m @ 800MHz, 45.8 dB/100m @ 862MHz, 49.6 dB/100m @ 1GHz, 58.2 dB/100m @ 1350MHz, 66.8 dB/100m @ 1750MHz, 74.6 dB/100m @ 2150MHz
Number of Strands:
19
Sheath Material:
Low Smoke Zero Halogen (LSZH)
Voltage Rating:
4000 V dc
Core Strands:
19/33
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+70°C
Velocity ratio:
66%
Operating Temperature Range:
Maximum of +70 °C
Fire Behaviour:
Low Smoke Zero Halogen (LSZH)
Length:
100m
Coaxial Type:
RG58
Characteristic Impedance:
50 Ω
Conductor Material:
Tinned Copper
Size of Strands:
0.18 mm
Sheath Colour:
Black
Minimum Operating Temperature:
-30°C
Insulation Material:
PE

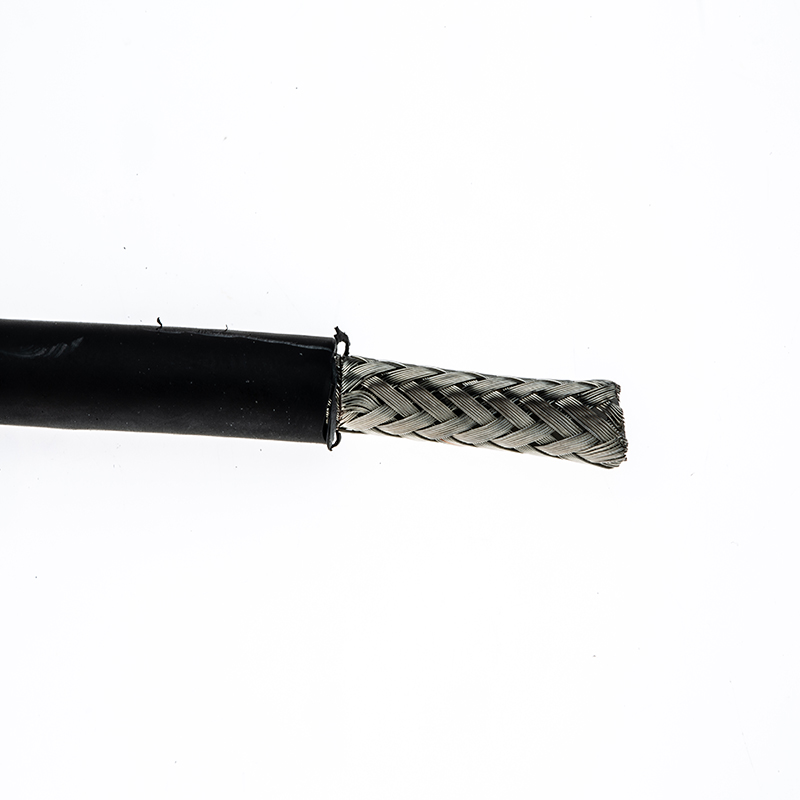

This is Black RG58C/U Coaxial Cable Low Smoke Zero Halogen (LSZH) 100m manufactured by Belden. The manufacturer part number is RS_521-8436. It provides a 100pf/m of capacitance value. Termination Options -unterminated. Its outer diameter is 4.95mm. Its attenuation is about 79.2, 10.6 db/100m @ 50mhz, 15.1 db/100m @ 100mhz, 23.1 db/100m @ 230mhz, 3.3 db/100m @ 5mhz, 30.7 db/100m @ 400mhz, 44.1 db/100m @ 800mhz, 45.8 db/100m @ 862mhz, 49.6 db/100m @ 1ghz, 58.2 db/100m @ 1350mhz, 66.8 db/100m @ 1750mhz, 74.6 db/100m @ 2150mhz . Additionally, it contains 19 strands. The sheath is constructed from durable and adorable low smoke zero halogen (lszh) material. Moreover, the product has a nominal 4000 v dc voltage rating. The core strands are 19/33. It has a stranded type conductor strand . It has a maximum operating temperature of +70°c. Its velocity ratio is 66% . The product has maximum of +70 °c of operating temperature range. The product has a low smoke zero halogen (lszh) fire behaviour. Its accurate length is 100m. It has a/an rg58 type coaxial . The typical characteristic impedance includes 50 ω. The conductor is made from tinned copper material. The strand size includes 0.18 mm. The sheath has an adorable black colour. Whereas, the minimum operating temperature of the product is -30°c. It has a robust pe insulation material.
