Capacitance:
79.72pF/m
Terminated/Unterminated:
Unterminated
CPR Certification:
Eca
Outer Diameter:
4.95mm
Attenuation:
11 dB/100 ft @ 900 MHz, 14.5 dB/100 ft @ 1500 MHz, 16.1 dB/100 ft @ 1800 MHz, 17.1 dB/100 ft @ 2000 MHz, 19.5 dB/100 ft @ 2500 MHz, 2.6 dB/100 ft @ 30 MHz, 21.8 dB/100 ft @ 3000 MHz, 24 dB/100 ft @ 3500 MHz, 27.9 dB/100 ft @ 4500 MHz, 3 dB/100 ft @ 50 MHz, 33 dB/100 ft @ 5800 MHz, 33.7 dB/100 ft @ 6000 MHz, 4.3 dB/100 ft @ 150 MHz, 5.3 dB/100 ft @ 220 MHz, 7.6 dB/100 ft @ 450 MHz
Shielding:
Tinned Copper Braid
Sheath Material:
Polyvinyl Chloride PVC
Voltage Rating:
300 V
Conductor Strand Type:
Solid
Maximum Operating Temperature:
+75°C
Velocity ratio:
0.77
Operating Temperature Range:
-20 → +75 °C
Fire Behaviour:
Flame Retardant
Length:
304.8m
Coaxial Type:
RG58
Characteristic Impedance:
50 Ω
Conductor Material:
Bare Copper
Series:
7806R
Sheath Colour:
Black
Minimum Operating Temperature:
-20°C
Insulation Material:
Foam HDPE

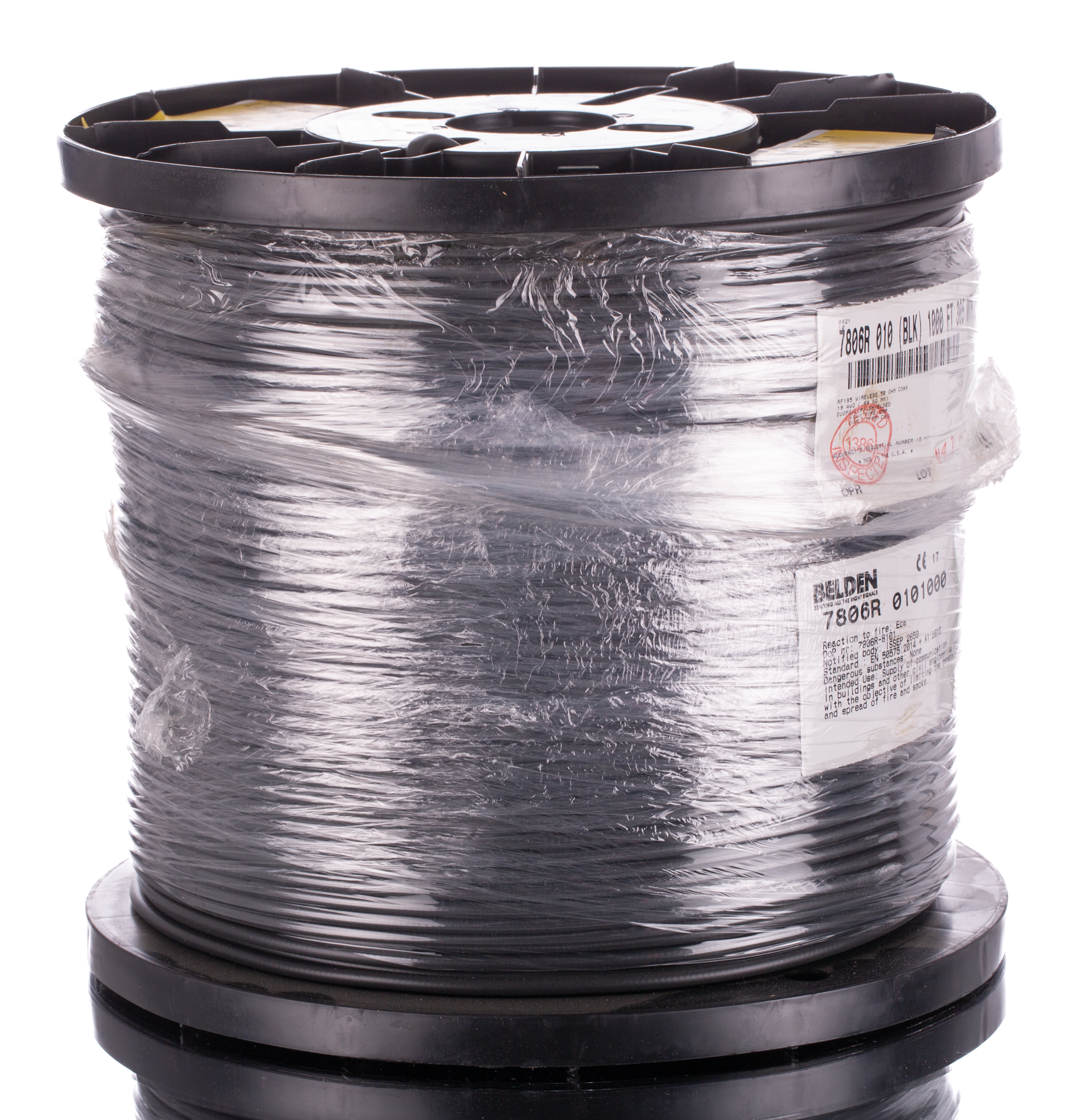

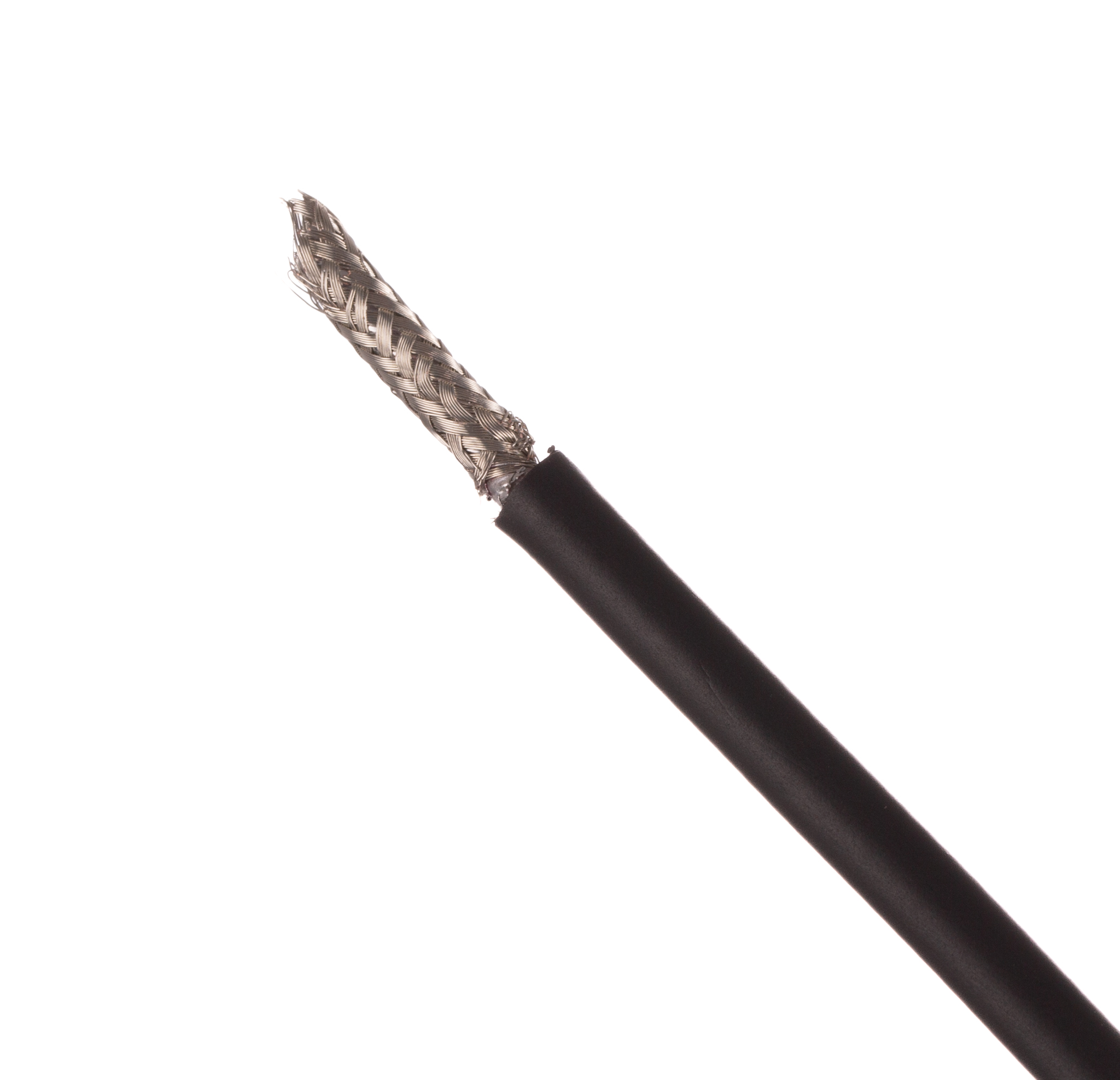

This is COAX RF 195 DFII PVC manufactured by Belden. The manufacturer part number is 7806R 0101000. It provides a 79.72pf/m of capacitance value. Termination Options -unterminated. Its outer diameter is 4.95mm. Its attenuation is about 11 db/100 ft @ 900 mhz, 14.5 db/100 ft @ 1500 mhz, 16.1 db/100 ft @ 1800 mhz, 17.1 db/100 ft @ 2000 mhz, 19.5 db/100 ft @ 2500 mhz, 2.6 db/100 ft @ 30 mhz, 21.8 db/100 ft @ 3000 mhz, 24 db/100 ft @ 3500 mhz, 27.9 db/100 ft @ 4500 mhz, 3 db/100 ft @ 50 mhz, 33 db/100 ft @ 5800 mhz, 33.7 db/100 ft @ 6000 mhz, 4.3 db/100 ft @ 150 mhz, 5.3 db/100 ft @ 220 mhz, 7.6 db/100 ft @ 450 mhz . Furthermore, the product is shielded with tinned copper braid. The sheath is constructed from durable and adorable polyvinyl chloride pvc material. Moreover, the product has a nominal 300 v voltage rating. It has a solid type conductor strand . It has a maximum operating temperature of +75°c. Its velocity ratio is 0.77 . The product has -20 → +75 °c of operating temperature range. The product has a flame retardant fire behaviour. Its accurate length is 304.8m. It has a/an rg58 type coaxial . The typical characteristic impedance includes 50 ω. The conductor is made from bare copper material. The product 7806r, is a highly preferred choice for users. The sheath has an adorable black colour. Whereas, the minimum operating temperature of the product is -20°c. It has a robust foam hdpe insulation material.
