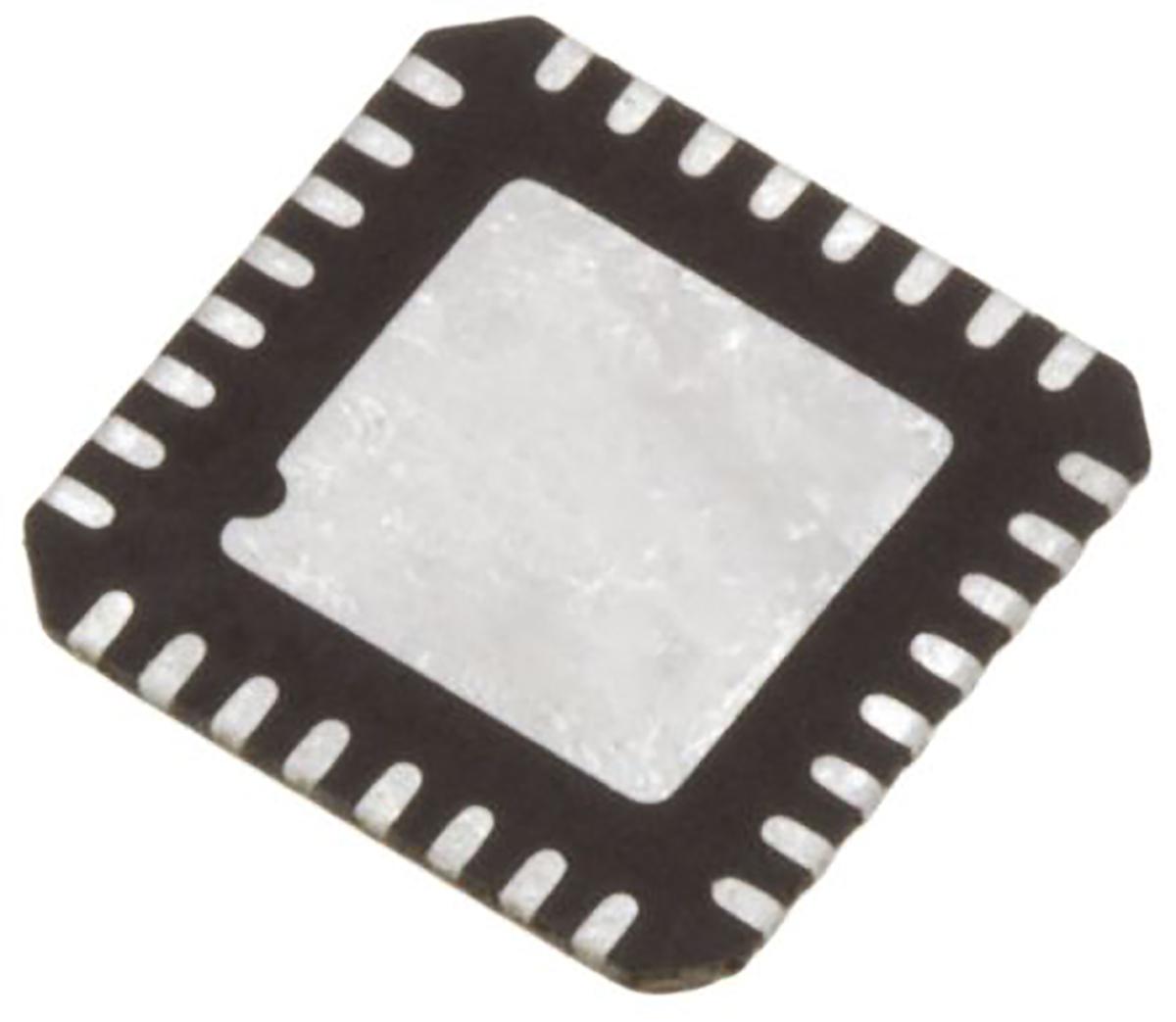

Analog Devices ADF4356 ADF4356BCPZ, Frequency Synthesizer, 53.12 → 6800 MHz, 32-Pin LFCSP

Enrgtech Part No: ET16757552
|
Manufacturer Part No:
ADF4356BCPZ
|
Manufacturer: Analog Devices

ADF4356BCPZ Analog Devices ADF4356 , Frequency Synthesizer, 53.12 → 6800 MHz, 32-Pin LFCSP

Product Information

Dimensions:

5.1 x 5.1 x 0.75mm

Mounting Type:

Surface Mount

Maximum Output Frequency:

6800MHz

Minimum Output Frequency:

53.12MHz

Minimum Operating Supply Voltage:

3.15 V

Maximum Supply Current:

90 mA

Height:

0.75mm

Width:

5.1mm

Length:

5.1mm

Maximum Input Frequency:

250 MHz, 600MHz

Package Type:

LFCSP

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is ADF4356 Frequency Synthesizer 53.12 → 6800 MHz 32-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is ADF4356BCPZ. The given dimensions of the product include 5.1 x 5.1 x 0.75mm. The product is available in surface mount configuration. Additionally, it has a maximum 6800mhz output frequency . It has a minimum 53.12mhz output frequency . While its minimum operating supply voltage is 3.15 v. Moreover, it has a maximum 90 ma supply current . In addition, the height is 0.75mm. Furthermore, the product is 5.1mm wide. Its accurate length is 5.1mm. The product has a maximum 250 mhz, 600mhz input frequency . The package is a sort of lfcsp. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.45 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 32 pins.

ADF4356, 6.8GHz Wideband Synthesizer with Integrated VCO(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search ADF4356BCPZ on website for other similar products.

We accept all major payment methods for all products including ET16757552. Please check your shopping cart at the time of order.

You can order Analog Devices brand products with ADF4356BCPZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Clock Synthesizers category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Analog Devices ADF4356 ADF4356BCPZ, Frequency Synthesizer, 53.12 → 6800 MHz, 32-Pin LFCSP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices ADF4356 ADF4356BCPZ, Frequency Synthesizer, 53.12 → 6800 MHz, 32-Pin LFCSP.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16757552 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16757552.

Yes. We ship ADF4356BCPZ Internationally to many countries around the world.
