Dimensions:
275 x 105 x 48mm
Power Source:
Battery
DC Current Measurement Resolution:
100mA
Maximum Conductor Size:
51mm
Width:
105mm
Battery Life:
100 h
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
100mA
Best Temperature Measurement Accuracy:
>80 %
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
750V ac
Model Number:
DCM1500
Best AC Voltage Accuracy:
±(1.5% rdg + 5dgts)
Absolute Maximum AC Current Measurement:
1500A ac
Battery Type:
Alkaline
Absolute Maximum Resistance Measurement:
400Ω
Maximum Operating Temperature:
+50°C
Jaw Capacity Busbars:
51mm
Safety Category Level:
CAT IV
Length:
275mm
Absolute Maximum Temperature Measurement:
+50°C
Absolute Maximum DC Current Measurement:
1500A dc
Display Type:
LCD
Best Resistance Measurement Accuracy:
±1% ±3 Digits
Best DC Current Accuracy:
±(1% rdg + 3dgts)
Weight:
524g
AC Voltage Measurement Resolution:
100mV
Best AC Current Accuracy:
±(1.5% rdg + 5dgts)
Safety Category Voltage:
600V
Absolute Maximum DC Voltage Measurement:
1000V dc
Height:
48mm
Safety Category:
CAT IV 600V
Best DC Voltage Accuracy:
±(0.7% rdg + 2dgts)
DC Voltage Measurement Resolution:
100mV
Clamp Meter Type:
AC/DC Clamp Meter
Minimum Operating Temperature:
0°C
Functions Measured:
AC Current, DC Current

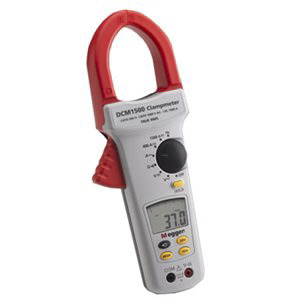

This is 1500 A AC & DC Digital Clamp Meter manufactured by Megger. The manufacturer part number is 1005-572. The given dimensions of the product include 275 x 105 x 48mm. Moreover, the product gets power from battery. It has about 100ma DC current measurement resolution . Moreover, it has a maximum 51mm size conductor . Furthermore, the product is 105mm wide. Its battery life is about 100 h . It has approximately 100mω resistance measurement resolution . In addition, it has about 100ma AC current measurement resolution . It has about >80 % best temperature measurement accuracy . It has a True RMS feature yes . Additionally, it has an absolute maximum 750v ac voltage measurement . It has a model number dcm1500. Its best AC voltage accuracy is about ±(1.5% rdg + 5dgts) . It has an absolute maximum 1500a ac current measurement . This alkaline battery is comparatively much efficient than common batteries. Moreover, it has an absolute maximum 400ω resistance measurement . It has a maximum operating temperature of +50°c. The product has about 51mm jaw busbars capacity . Moreover, its safety category level is cat iv . Its accurate length is 275mm. Whereas, the absolute maximum temperature measurement is +50°c . The product has an absolute maximum 1500a dc current measurement . It features a remarkable lcd display. It exhibits a ±1% ±3 digits best resistance measurement accuracy . Additionally, it has a ±(1% rdg + 3dgts) best DC current accuracy . The typical product's weight is 524g. Whereas, its AC voltage measurement resolution is 100mv . It has a ±(1.5% rdg + 5dgts) best AC current accuracy . Its safety category voltage is 600v . Moreover, it has an absolute maximum 1000v dc voltage measurement . In addition, the height is 48mm. It provides robust safety and is complied with cat iv 600v safety category. Moreover, it has a ±(0.7% rdg + 2dgts) best DC voltage accuracy . Its DC voltage measurement resolution is approximately 100mv . It has a/an ac/dc clamp meter type clamp meter . Whereas, the minimum operating temperature of the product is 0°c. Moreover, it has an ac current, dc current functions measured .
