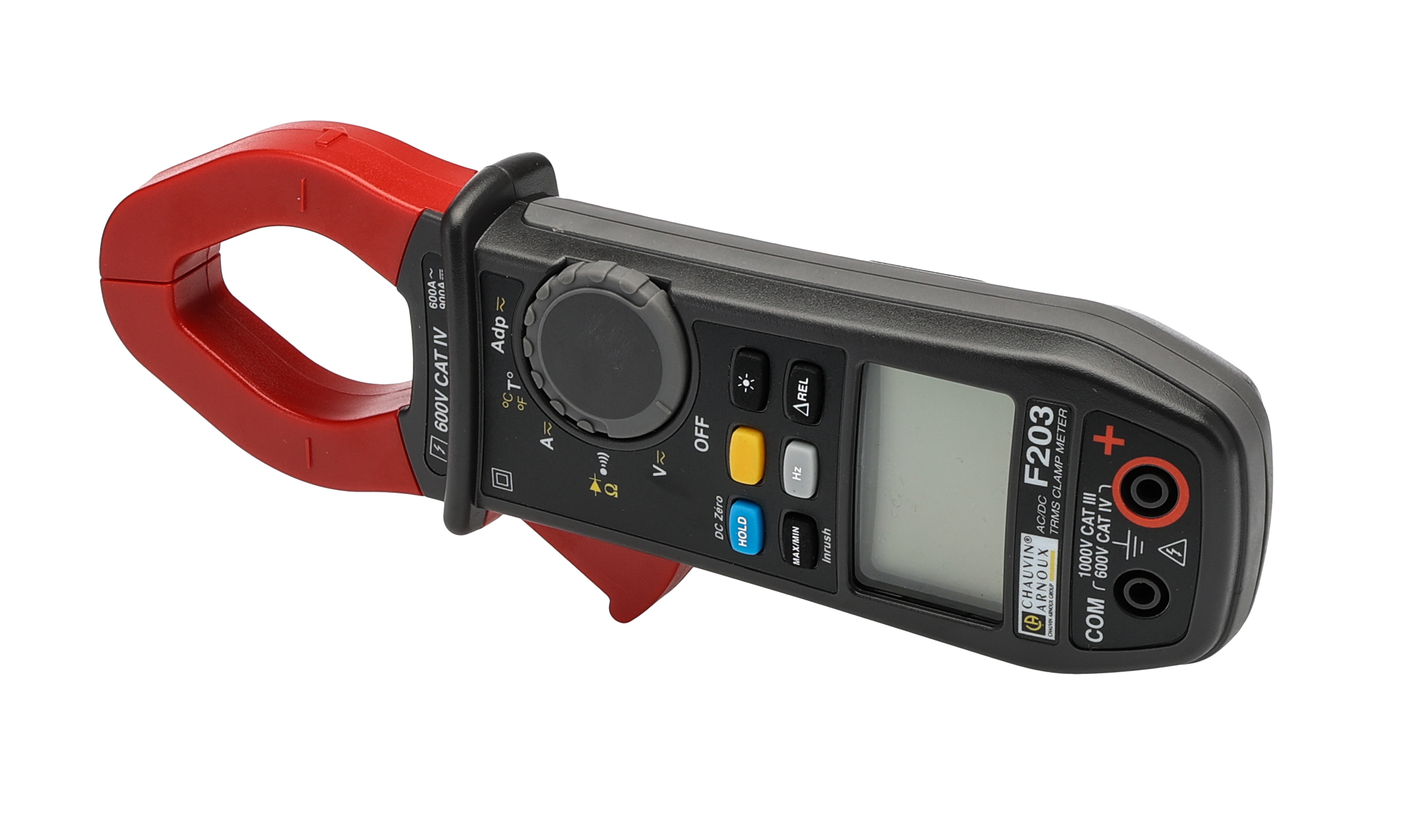

Chauvin Arnoux F203 Clamp Meter, Max Current 900A ac, 900A dc CAT IV 600 V

P01120923 Chauvin Arnoux F203 Clamp Meter, Max Current 900A ac, 900A dc CAT IV 600 V
P01120923
Chauvin Arnoux

Product Information

Dimensions:
78 x 42 x 222mm
Power Source:
Battery
DC Current Measurement Resolution:
0.01A
Maximum Conductor Size:
34mm
Width:
42mm
Battery Life:
130 h
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
0.01A
Best Temperature Measurement Accuracy:
±1% +3°C
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
1000V ac
Model Number:
F203
Best AC Voltage Accuracy:
±(1% rdg + 3dgts)
Absolute Maximum AC Current Measurement:
600A ac
Battery Type:
9V 6LR61
Absolute Maximum Resistance Measurement:
59.99kΩ
Maximum Operating Temperature:
+55°C
Jaw Capacity Busbars:
34mm
Safety Category Level:
CAT IV
Length:
78mm
Temperature Measurement Resolution:
0.1°C
Absolute Maximum Temperature Measurement:
+1000°C
Absolute Maximum DC Current Measurement:
900A dc
Display Type:
Backlit LCD
Best Resistance Measurement Accuracy:
±1 % + 5 digits
Best DC Current Accuracy:
±(1% rdg + 3dgts)
Weight:
340g
AC Voltage Measurement Resolution:
0.01V
Best AC Current Accuracy:
±(1% rdg + 3dgts)
Safety Category Voltage:
600V
Absolute Maximum DC Voltage Measurement:
1000V dc
Height:
222mm
Safety Category:
CAT III 1000 V, CAT IV 600V
Best DC Voltage Accuracy:
±(1% rdg + 3dgts)
DC Voltage Measurement Resolution:
0.01V
Clamp Meter Type:
AC/DC Clamp Meter
Minimum Operating Temperature:
-20°C
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, In-Rush Current, Resistance, Temperature
RoHs Compliant
Checking for live stock

This is F203 Clamp Meter Max Current 900A ac 900A dc CAT IV 600 V manufactured by Chauvin Arnoux. The manufacturer part number is P01120923. The given dimensions of the product include 78 x 42 x 222mm. Moreover, the product gets power from battery. It has about 0.01a DC current measurement resolution . Moreover, it has a maximum 34mm size conductor . Furthermore, the product is 42mm wide. Its battery life is about 130 h . It has approximately 100mω resistance measurement resolution . In addition, it has about 0.01a AC current measurement resolution . It has about ±1% +3°c best temperature measurement accuracy . It has a True RMS feature yes . Additionally, it has an absolute maximum 1000v ac voltage measurement . It has a model number f203. Its best AC voltage accuracy is about ±(1% rdg + 3dgts) . It has an absolute maximum 600a ac current measurement . This 9v 6lr61 battery is comparatively much efficient than common batteries. Moreover, it has an absolute maximum 59.99kω resistance measurement . It has a maximum operating temperature of +55°c. The product has about 34mm jaw busbars capacity . Moreover, its safety category level is cat iv . Its accurate length is 78mm. It has a 0.1°c temperature measurement resolution . Whereas, the absolute maximum temperature measurement is +1000°c . The product has an absolute maximum 900a dc current measurement . It features a remarkable backlit lcd display. It exhibits a ±1 % + 5 digits best resistance measurement accuracy . Additionally, it has a ±(1% rdg + 3dgts) best DC current accuracy . The typical product's weight is 340g. Whereas, its AC voltage measurement resolution is 0.01v . It has a ±(1% rdg + 3dgts) best AC current accuracy . Its safety category voltage is 600v . Moreover, it has an absolute maximum 1000v dc voltage measurement . In addition, the height is 222mm. It provides robust safety and is complied with cat iii 1000 v, cat iv 600v safety category. Moreover, it has a ±(1% rdg + 3dgts) best DC voltage accuracy . Its DC voltage measurement resolution is approximately 0.01v . It has a/an ac/dc clamp meter type clamp meter . Whereas, the minimum operating temperature of the product is -20°c. Moreover, it has an ac current, ac voltage, continuity, dc current, dc voltage, diode, frequency, in-rush current, resistance, temperature functions measured .

pdf icon
User's manual F203(Technical Reference)
pdf icon
Manual - P01120923(Technical Reference)
