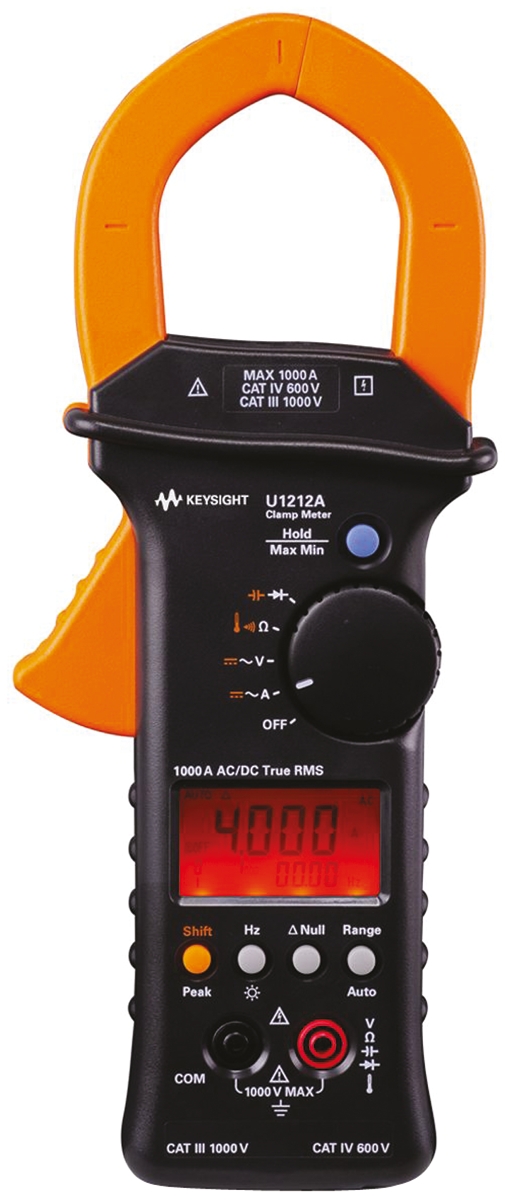

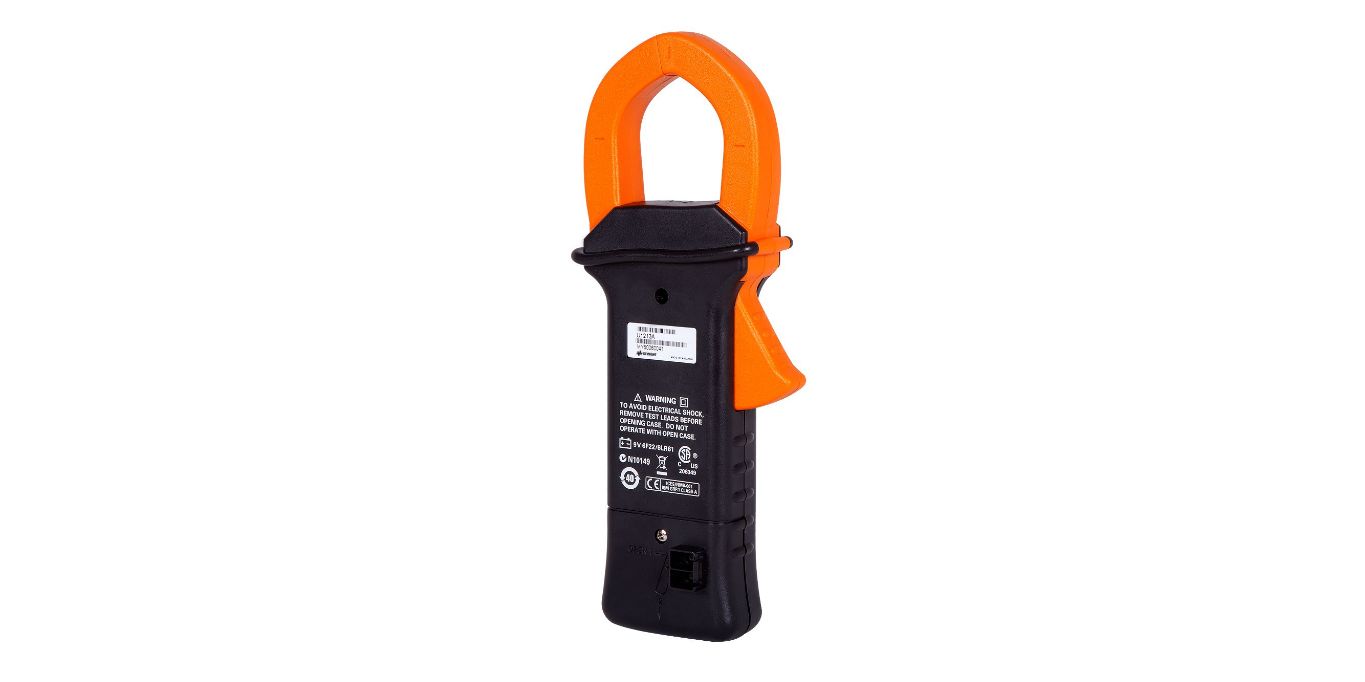

Keysight Technologies U1212A Clamp Meter, Max Current 1kA ac, 1kA dc CAT III 1000 V, CAT IV 600 V
Product Information
Dimensions:
260 x 106 x 43mm
Power Source:
Battery
DC Current Measurement Resolution:
10mA
Maximum Conductor Size:
52mm
DC Current Measurement Range:
0.01 → 1000 A
AC Current Measurement Range:
0.01 → 1000 A
Width:
106mm
Battery Life:
60 h
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
10mA
Best Temperature Measurement Accuracy:
±1% + 1 °C
True RMS:
Yes
AC Voltage Measurement Range:
400 → 1000 V
Absolute Maximum AC Voltage Measurement:
1000V ac
Model Number:
U1212A
Best AC Voltage Accuracy:
±1% + 5 Digits
Connectivity:
Bluetooth
Absolute Maximum AC Current Measurement:
1000A ac
Absolute Maximum Temperature Measurement:
+1372°C
Battery Type:
9V
Absolute Maximum Resistance Measurement:
4kΩ
Maximum Operating Temperature:
+50°C
Non-Contact Voltage Detector:
Yes
Minimum Operating Temperature:
-10°C
Safety Category Level:
CAT IV, CAT III
Length:
260mm
Calibrated:
RSCAL
Temperature Measurement Resolution:
0.1°C
Best DC Current Accuracy:
±2% + 5 Digits
Absolute Maximum DC Current Measurement:
1000A dc
Display Type:
LCD
Best Resistance Measurement Accuracy:
±0.5% + 3 Digits
Jaw Capacity Busbars:
52mm
Weight:
525g
AC Voltage Measurement Resolution:
100mV
Best AC Current Accuracy:
±2% +5 digits
Safety Category Voltage:
600 V, 1000V
Absolute Maximum DC Voltage Measurement:
1000V dc
Height:
43mm
Safety Category:
CAT III 1000 V, CAT IV 600V
Best DC Voltage Accuracy:
±0.5% + 3 Digits
DC Voltage Measurement Resolution:
100mV
Clamp Meter Type:
AC/DC Clamp Meter
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Peak Hold, Resistance, Temperature
Checking for live stock
FAQs
Yes. You can also search U1212A on website for other similar products.
We accept all major payment methods for all products including ET14134297. Please check your shopping cart at the time of order.
You can order Keysight Technologies brand products with U1212A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Clamp Meters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Keysight Technologies U1212A Clamp Meter, Max Current 1kA ac, 1kA dc CAT III 1000 V, CAT IV 600 V. You can also check on our website or by contacting our customer support team for further order details on Keysight Technologies U1212A Clamp Meter, Max Current 1kA ac, 1kA dc CAT III 1000 V, CAT IV 600 V.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14134297 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Keysight Technologies" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14134297.
Yes. We ship U1212A Internationally to many countries around the world.
This is Clamp Meter Max Current 1kA ac 1kA dc CAT III 1000 V CAT IV 600 V manufactured by Keysight Technologies. The manufacturer part number is U1212A. The given dimensions of the product include 260 x 106 x 43mm. Moreover, the product gets power from battery. It has about 10ma DC current measurement resolution . Moreover, it has a maximum 52mm size conductor . In addition, it has a DC Current Measurement Range of 0.01 → 1000 a The AC Current Measurement Range of the product is 0.01 → 1000 a Furthermore, the product is 106mm wide. Its battery life is about 60 h . It has approximately 100mω resistance measurement resolution . In addition, it has about 10ma AC current measurement resolution . It has about ±1% + 1 °c best temperature measurement accuracy . It has a True RMS feature yes . It has an AC Voltage Measurement Range of 400 → 1000 v Additionally, it has an absolute maximum 1000v ac voltage measurement . It has a model number u1212a. Its best AC voltage accuracy is about ±1% + 5 digits . It provides connectivity solutions through bluetooth. It has an absolute maximum 1000a ac current measurement . Whereas, the absolute maximum temperature measurement is +1372°c . This 9v battery is comparatively much efficient than common batteries. Moreover, it has an absolute maximum 4kω resistance measurement . It has a maximum operating temperature of +50°c. It includes a non-contact voltage detector yes . Whereas, the minimum operating temperature of the product is -10°c. Moreover, its safety category level is cat iv, cat iii . Its accurate length is 260mm. It is calibrated rscal . It has a 0.1°c temperature measurement resolution . Additionally, it has a ±2% + 5 digits best DC current accuracy . The product has an absolute maximum 1000a dc current measurement . It features a remarkable lcd display. It exhibits a ±0.5% + 3 digits best resistance measurement accuracy . The product has about 52mm jaw busbars capacity . The typical product's weight is 525g. Whereas, its AC voltage measurement resolution is 100mv . It has a ±2% +5 digits best AC current accuracy . Its safety category voltage is 600 v, 1000v . Moreover, it has an absolute maximum 1000v dc voltage measurement . In addition, the height is 43mm. It provides robust safety and is complied with cat iii 1000 v, cat iv 600v safety category. Moreover, it has a ±0.5% + 3 digits best DC voltage accuracy . Its DC voltage measurement resolution is approximately 100mv . It has a/an ac/dc clamp meter type clamp meter . Moreover, it has an ac current, ac voltage, capacitance, continuity, dc voltage, diode, frequency, peak hold, resistance, temperature functions measured .
