Dimensions:
243 x 96 x 43mm
Power Source:
Battery
DC Current Measurement Resolution:
0.1µA
Temperature Measurement Resolution:
0.2°C
DC Current Measurement Range:
0.1 → 600 A
AC Current Measurement Range:
0.1 → 600 A
Width:
96mm
Resistance Measurement Resolution:
0.01Ω
AC Current Measurement Resolution:
0.1µA
Best Temperature Measurement Accuracy:
0.1 %
True RMS:
Yes
AC Voltage Measurement Range:
0.001 → 600 V
Absolute Maximum AC Voltage Measurement:
600V ac
Model Number:
770-3
Best AC Voltage Accuracy:
0.1 %
Connectivity:
Bluetooth
Absolute Maximum AC Current Measurement:
600A ac
Battery Type:
AAA
Absolute Maximum Resistance Measurement:
60MΩ
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
-10°C
Safety Category Level:
CAT III, CAT IV
Length:
243mm
Calibrated:
RSCAL
Absolute Maximum Temperature Measurement:
+500°C
Display Type:
LCD
Best Resistance Measurement Accuracy:
0.1 %
Best DC Current Accuracy:
0.1 %
Weight:
378g
AC Voltage Measurement Resolution:
1mV
Best AC Current Accuracy:
0.1 %
Safety Category Voltage:
600 V, 1000V
Height:
43mm
Safety Category:
CAT III 1000 V, CAT IV 600V
Best DC Voltage Accuracy:
0.1 %
DC Voltage Measurement Resolution:
1mV
Clamp Meter Type:
AC/DC Clamp Meter
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature

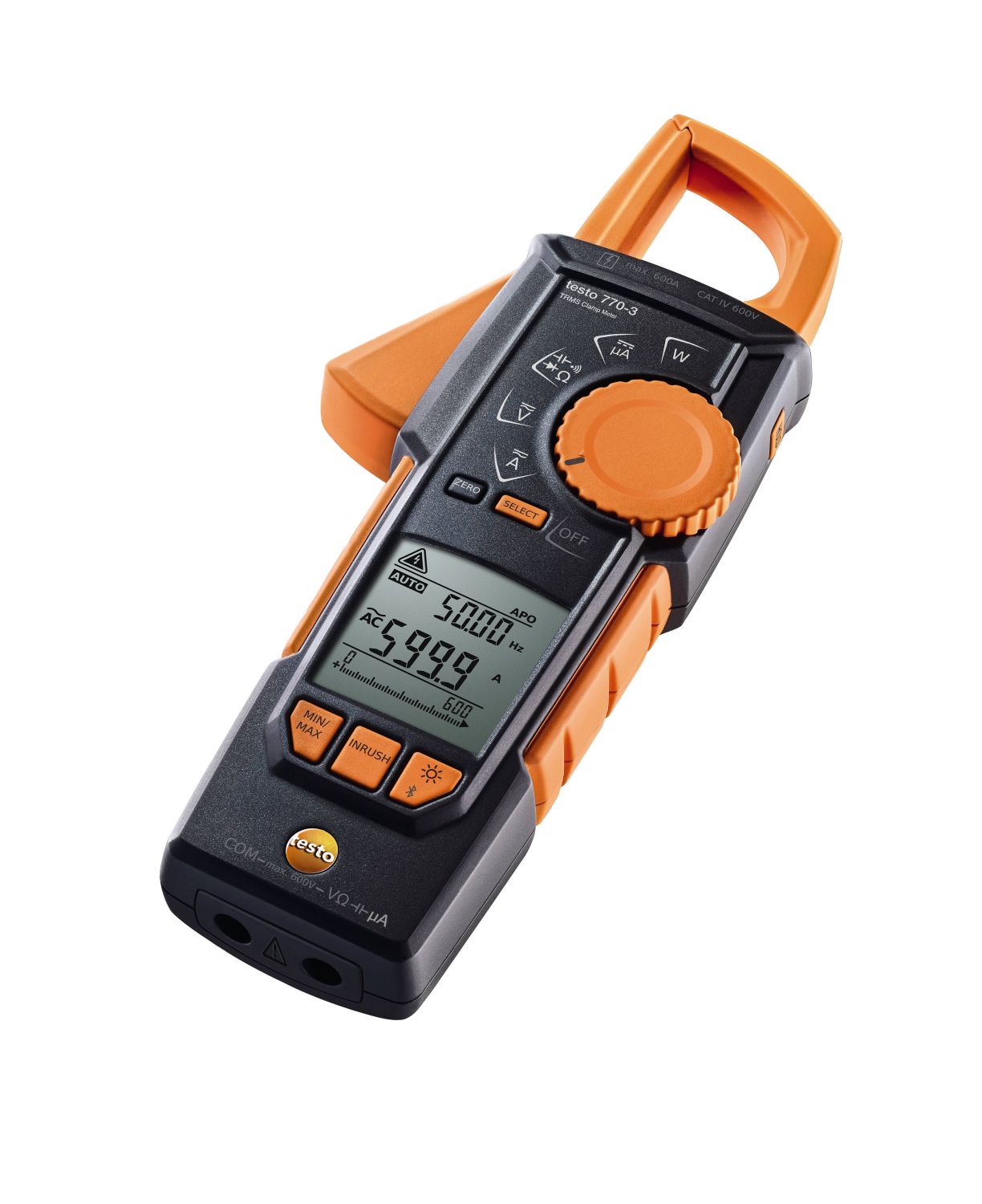

This is 770-3 Clamp Meter CAT 3 1000 V CAT 4 600 V manufactured by Testo. The manufacturer part number is 0590 7703. The given dimensions of the product include 243 x 96 x 43mm. Moreover, the product gets power from battery. It has about 0.1µa DC current measurement resolution . It has a 0.2°c temperature measurement resolution . In addition, it has a DC Current Measurement Range of 0.1 → 600 a The AC Current Measurement Range of the product is 0.1 → 600 a Furthermore, the product is 96mm wide. It has approximately 0.01ω resistance measurement resolution . In addition, it has about 0.1µa AC current measurement resolution . It has about 0.1 % best temperature measurement accuracy . It has a True RMS feature yes . It has an AC Voltage Measurement Range of 0.001 → 600 v Additionally, it has an absolute maximum 600v ac voltage measurement . It has a model number 770-3. Its best AC voltage accuracy is about 0.1 % . It provides connectivity solutions through bluetooth. It has an absolute maximum 600a ac current measurement . This aaa battery is comparatively much efficient than common batteries. Moreover, it has an absolute maximum 60mω resistance measurement . It has a maximum operating temperature of +50°c. Whereas, the minimum operating temperature of the product is -10°c. Moreover, its safety category level is cat iii, cat iv . Its accurate length is 243mm. It is calibrated rscal . Whereas, the absolute maximum temperature measurement is +500°c . It features a remarkable lcd display. It exhibits a 0.1 % best resistance measurement accuracy . Additionally, it has a 0.1 % best DC current accuracy . The typical product's weight is 378g. Whereas, its AC voltage measurement resolution is 1mv . It has a 0.1 % best AC current accuracy . Its safety category voltage is 600 v, 1000v . In addition, the height is 43mm. It provides robust safety and is complied with cat iii 1000 v, cat iv 600v safety category. Moreover, it has a 0.1 % best DC voltage accuracy . Its DC voltage measurement resolution is approximately 1mv . It has a/an ac/dc clamp meter type clamp meter . Moreover, it has an ac current, ac voltage, capacitance, dc current, dc voltage, frequency, resistance, temperature functions measured .
