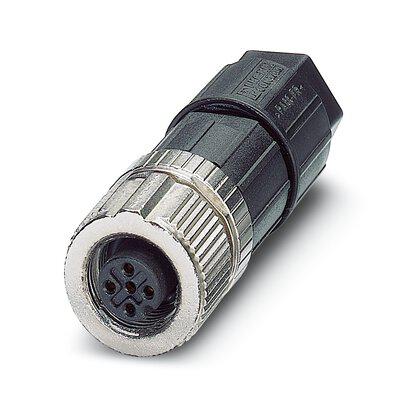

Contact Material:
Copper Tin
Number of Contacts:
5
Orientation:
Straight
Housing Material:
Die Cast Zinc, Nickel Plated, Polyamide 6, Polyamide 66, Polybutylene Terephthalate
IP Rating:
IP65, IP67
Connector Size:
M12
Series:
SACC
Coding:
A
Contact Gender:
Female
Current:
4A
Plug/Socket:
Socket
Standards/Approvals:
cUL Listed, cULus Listed, DIN EN 45545-2, EN 50155:2001, IEC 61076-2-101, UL Listed
Voltage:
25 V
Contact Plating:
Nickel Gold Alloy
Shell Size:
M12
Termination Type:
Spring Terminal
Product Type:
Circular Connector
Maximum Operating Temperature:
85°C
Minimum Operating Temperature:
-40°C
Mount Type:
Cable
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-40°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
5
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Polyamide (PA66), Nylon 6/6
Shielding:
Shielded
Cable Opening:
0.157" ~ 0.315" (4.00mm ~ 8.00mm)
title:
1012968
Shell Material:
Zinc Die Cast
Current Rating (Amps):
4A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 V-0
Voltage Rating:
48VAC, 60VDC
Shell Size - Insert:
M12-5
Connector Type:
Plug, Female Sockets
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
Threaded
Termination:
Spring-Cage
standardLeadTime:
9 Weeks
Insert Material:
Polyamide (PA66), Nylon 6/6
Orientation:
A
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Features:
Backshell
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Black, Silver
Series:
SACC
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Alloy
ECCN:
EAR99
