Current Rating:
15.0A
Mating Type:
Push-Pull
Mounting Type:
Front Mount
IP Rating:
IP68
Series:
JMX
Body Orientation:
Straight
Voltage Rating:
230.0 V
Pole Format:
3P
Contact Gender:
Female
Termination Method:
Solder
Housing Material:
Polymer
Plug/Socket:
Socket
Contact Plating:
Gold
Shell Size:
1
Number of Contacts:
3
Maximum Operating Temperature:
+100°C
Minimum Operating Temperature:
-20°C
Contact Material:
Copper
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
230V
Mounting Feature:
Bulkhead - Rear Side Nut
Operating Temperature:
-20°C ~ 100°C
Shell Size, MIL:
-
Number of Positions:
3
Backshell Material, Plating:
-
Shielding:
Unshielded
Cable Opening:
-
Shell Material:
Polyetherimide (PEI)
REACH Status:
REACH Unaffected
Current Rating (Amps):
9A
edacadModel:
JMXHH1G03FSUDSU Models
Applications:
Industrial, Instrumentation, Medical
Contact Finish - Mating:
Gold
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7065971
Package:
Bulk
Shell Size - Insert:
1-3
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Solder Cup
Insert Material:
Polyetheretherketone (PEEK)
Orientation:
G
Ingress Protection:
IP68 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Shell Finish:
-
Color:
Light Gray
Series:
JMX
Contact Finish Thickness - Mating:
19.7µin (0.50µm)
Contact Material:
Copper Nickel
Base Product Number:
JMXHH1
ECCN:
EAR99

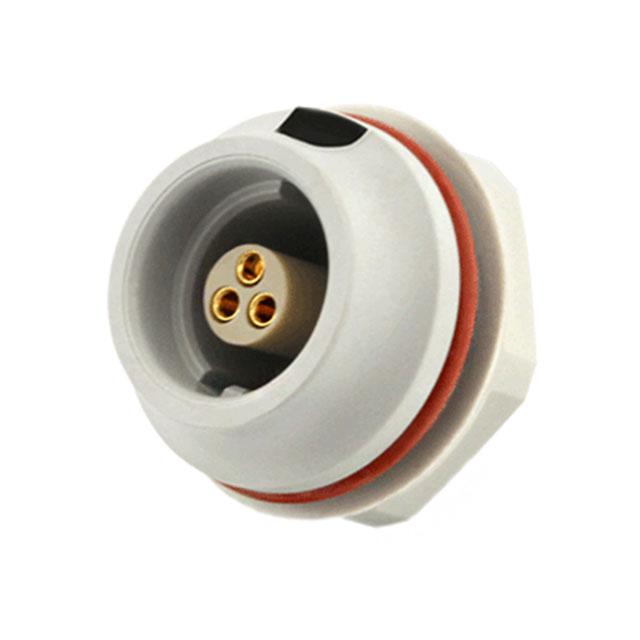

This is manufactured by Souriau-Sunbank by Eaton. The manufacturer part number is JMXHH1G03FSUDSU. The product has a current rating of 15.0a. It is a type of push-pull mating. The product is available in front mount configuration. It is IP rated with ip68. The product jmx, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 230.0 v voltage rating. While the pole has 3p format. This female contact is widely suited for specific applications. It allows solder termination method. The product also features robust polymer housing material. It comprises a socket. The high-quality gold is used as contact plating material. The shell has 1 size. The product contains 3 contacts. It has a maximum operating temperature of +100°c. Whereas, the minimum operating temperature of the product is -20°c. The product is made from sturdy copper materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. Moreover, the product has a nominal 230v voltage rating. The product's mounting feature includes bulkhead - rear side nut. The product has -20°c ~ 100°c operating temperature range. The product carries possible position value of 3. Furthermore, the product is shielded with unshielded. It is made from highly reliable polyetherimide (pei) materials. In addition, it is reach unaffected. Additionally, the product's output is 9a. The product is widely employed in industrial, instrumentation, medical. It has nice contact finishing of gold. The basic product material is plastic. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . The insert's size is 1-3. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder cup termination style. While it is also supplied with highly stable polyetheretherketone (peek) insert material. The product has a g orientation. It is IP rated with ip68 - dust tight, waterproof. The product is available in panel mount configuration. It has a classic light gray colour. However, 19.7µin (0.50µm) is the "Contact Finish Thickness - Mating" of the product. The product is made from sturdy copper nickel materials. Moreover, it corresponds to jmxhh1, a base product number of the product. The product is designated with the ear99 code number.
