Number of Contacts:
5
Minimum Operating Temperature:
-40°C
IP Rating:
IP67
Connector Size:
M12
Series:
SACC
Coding:
L
Contact Gender:
Female
Current:
16A
Plug/Socket:
Socket
Standards/Approvals:
cULus, RoHS
Voltage:
63 V
Contact Plating:
Gold
Contact Material:
Copper Zinc Alloy
Product Type:

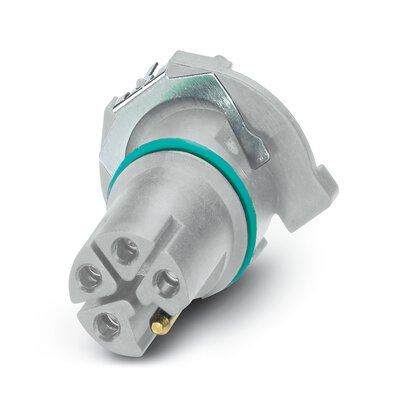

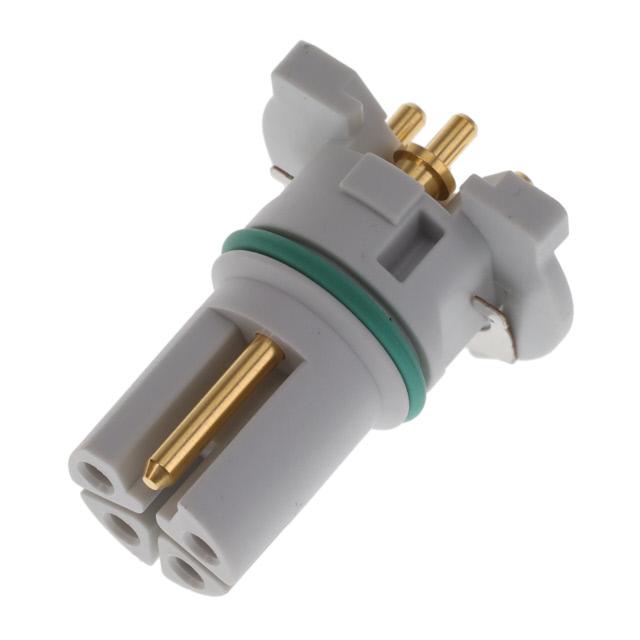

Contact Insert
Maximum Operating Temperature:
105°C
Mount Type:
PCB
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-25°C ~ 105°C
Shell Size, MIL:
-
Number of Positions:
5 (4 Power + FE)
Contact Finish - Mating:
Gold
Backshell Material, Plating:
-
Shielding:
Unshielded
Cable Opening:
-
title:
1425602
Shell Material:
-
REACH Status:
REACH Affected
Current Rating (Amps):
16A
Applications:
-
Primary Material:
-
Material Flammability Rating:
UL94 V-0
Voltage Rating:
63V
Shell Size - Insert:
M12-5
Connector Type:
Insert, Female Sockets and Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
-
Termination:
Solder
standardLeadTime:
7 Weeks
Insert Material:
Polyamide (PA4T), Nylon 4/T
Orientation:
L
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Guide, Insert Only, Requires Shell
Mounting Type:
Through Hole
Shell Finish:
-
Color:
-
Series:
SACC
Packaging:
Tape & Reel (TR)
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Zinc
ECCN:
EAR99
