HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
100VAC, 140VDC
Mounting Feature:
-
Operating Temperature:
-25°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
6 (Power)
Backshell Material, Plating:
Polybutylene Terephthalate (PBT)
Shielding:
Unshielded
Cable Opening:
0.165" ~ 0.197" (4.20mm ~ 5.00mm)
Shell Material:
Polybutylene Terephthalate (PBT)
REACH Status:
REACH Affected
Current Rating (Amps):
2A
edacadModel:
HR30-6P-6S(31) Models
Applications:
Industrial, Marine, Medical
Contact Finish - Mating:
Gold
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9170903
Package:
Bulk
Shell Size - Insert:
6
Connector Type:
Plug, Female Sockets
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
Push-Pull
Termination:
Solder Cup
standardLeadTime:
12 Weeks
Insert Material:
Polyphenylene Sulfide (PPS)
Orientation:
Keyed
Ingress Protection:
IP67/IP68 - Dust Tight, Waterproof
Features:
Backshell, Coupling Nut, Strain Relief
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Color:
Black
Series:
HR30
Contact Finish Thickness - Mating:
7.87µin (0.200µm)
Contact Material:
Bronze Alloy
Base Product Number:
HR30
ECCN:
EAR99

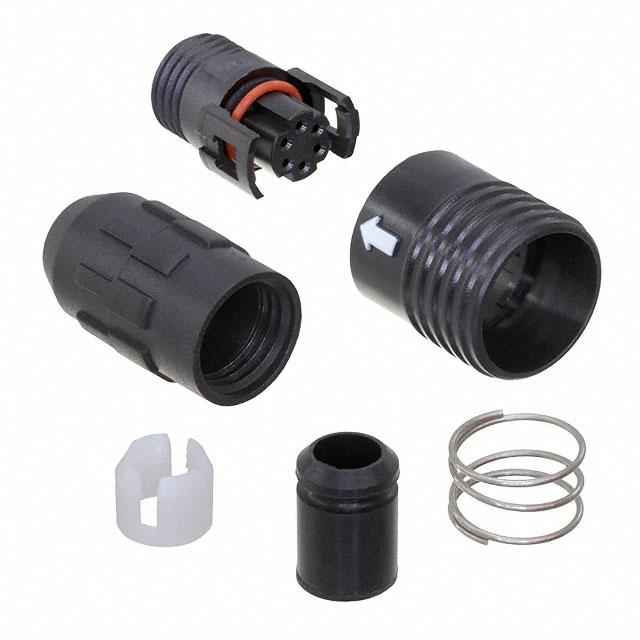

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is HR30-6P-6S(31). It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. Moreover, the product has a nominal 100vac, 140vdc voltage rating. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 6 (power). The product is plated with reliable polybutylene terephthalate (pbt) material. Furthermore, the product is shielded with unshielded. Cable opening features include 0.165" ~ 0.197" (4.20mm ~ 5.00mm). It is made from highly reliable polybutylene terephthalate (pbt) materials. In addition, it is reach affected. Additionally, the product's output is 2a. The product is widely employed in industrial, marine, medical. It has nice contact finishing of gold. The basic product material is plastic. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . The insert's size is 6. plug, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. Furthermore, push-pull is the Fastening Type of the product. The product features solder cup termination style. It has a long 12 weeks standard lead time. While it is also supplied with highly stable polyphenylene sulfide (pps) insert material. The product has a keyed orientation. It is IP rated with ip67/ip68 - dust tight, waterproof. The splendid features of the product include backshell, coupling nut, strain relief. The product is available in free hanging (in-line) configuration. It has a classic black colour. The product hr30, is a highly preferred choice for users. However, 7.87µin (0.200µm) is the "Contact Finish Thickness - Mating" of the product. The product is made from sturdy bronze alloy materials. Moreover, it corresponds to hr30, a base product number of the product. The product is designated with the ear99 code number.
