HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-25°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
3 (Power)
Backshell Material, Plating:
Polybutylene Terephthalate (PBT)
Shielding:
Unshielded
Cable Opening:
0.165" ~ 0.197" (4.20mm ~ 5.00mm)
title:

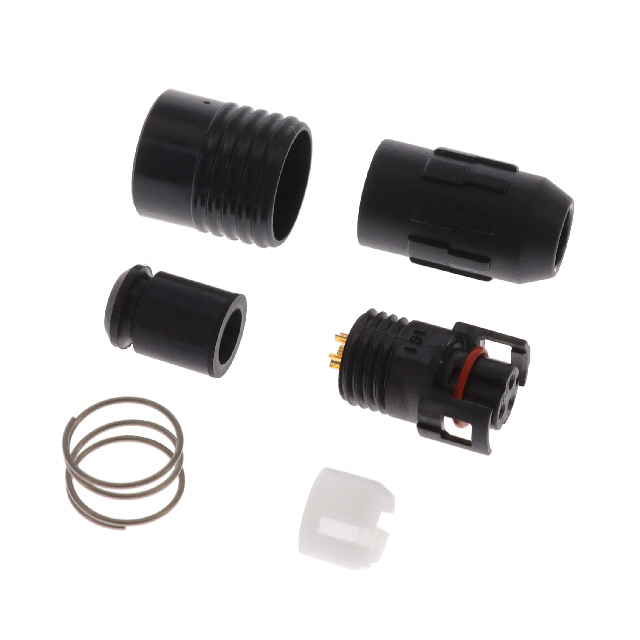

HR30-6P-3S(31)
Shell Material:
Polybutylene Terephthalate (PBT)
REACH Status:
REACH Affected
Current Rating (Amps):
5A
edacadModel:
HR30-6P-3S(31) Models
Applications:
Industrial, Marine, Medical
Contact Finish - Mating:
Gold
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9170901
Voltage Rating:
100VAC, 140VDC
Shell Size - Insert:
6
Connector Type:
Plug, Female Sockets
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
Push-Pull
Termination:
Solder Cup
standardLeadTime:
12 Weeks
Insert Material:
Polyphenylene Sulfide (PPS)
Orientation:
Keyed
Ingress Protection:
IP67/IP68 - Dust Tight, Waterproof
Features:
Backshell, Coupling Nut, Strain Relief
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Color:
Black
Series:
HR30
Packaging:
Bulk
Contact Finish Thickness - Mating:
7.87µin (0.200µm)
Contact Material:
Phosphor Bronze
Base Product Number:
HR30
ECCN:
EAR99
