Housing Material:
Polyamide
Number of Contacts:
3
Mating Type:
Quick On
IP Rating:
IP66, IP68, IP69K
Series:
QPD
Pole Format:
2+PE
Current:
17.5A
Standards/Approvals:
cUL Listed, DNV GL, EAC, IECEE CB Scheme, UL Listed, VDE
Voltage:
690 V
Contact Plating:
Silver
Contact Material:
Copper
Termination Type:
IDC

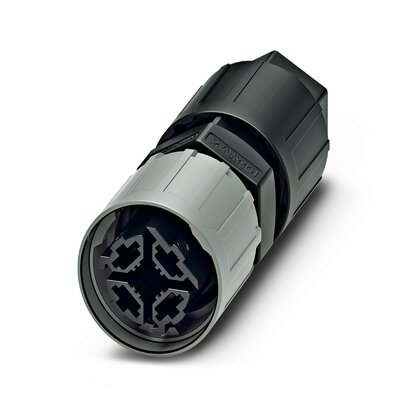

Product Type:
Circular Connector
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Orientation:
Straight
HTSUS:
8536.69.4020
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Operating Temperature:
-40°C ~ 100°C
Shell Size, MIL:
-
Number of Positions:
3 (2 + PE)
Contact Finish - Mating:
Silver
Backshell Material, Plating:
Polyamide (PA), Nylon
Shielding:
Unshielded
Cable Opening:
0.197" ~ 0.374" (5.00mm ~ 9.50mm)
Voltage Rating:
-
Current Rating (Amps):
17.5A
Applications:
-
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Shell Size - Insert:
-
Connector Type:
Distributor
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Shell Material:
Polyamide (PA), Nylon
Termination:
IDC
standardLeadTime:
4 Weeks
Insert Material:
Polyamide (PA), Nylon
Orientation:
Keyed
Ingress Protection:
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
Backshell, Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Color:
Black
Series:
QPD
Contact Finish Thickness - Mating:
-
Contact Material:
Copper
ECCN:
EAR99
