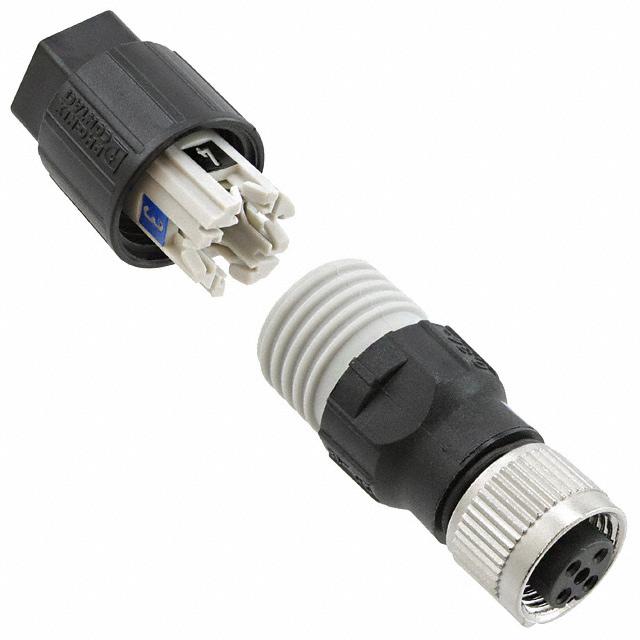

Phoenix Contact 1521601
Product Information
Current Rating:
4A
Mating Type:
A Coded
IP Rating:
IP65, IP67
Minimum Operating Temperature:
-25°C
Series:
SACC
Body Orientation:
Straight
Voltage Rating:
250 V
Coding:
A
Contact Gender:
Female
Housing Material:
PA6
Plug/Socket:
Socket
Connector Size:
M12
Contact Plating:
Nickel
Shell Size:
15mm
Shielded/Unshielded:
Unshielded
Number of Contacts:
4
Outer Diameter:
4 → 8mm
Maximum Operating Temperature:
+80°C
Contact Material:
CuSn
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
250V
Mounting Feature:
-
Operating Temperature:
-25°C ~ 80°C
Shell Size, MIL:
-
Number of Positions:
4
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Polyamide (PA6), Nylon 6
Shielding:
-
Cable Opening:
0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Shell Material:
Zinc Die Cast
REACH Status:
REACH Unaffected
Current Rating (Amps):
4A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Shell Size - Insert:
M12-4
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Twist
Termination:
IDC
standardLeadTime:
8 Weeks
Insert Material:
Thermoplastic Polyurethane (TPU)
Orientation:
A
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Features:
Backshell, Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Black, Silver
Series:
SACC
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Tin
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1521601 on website for other similar products.
We accept all major payment methods for all products including ET11735848. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1521601 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Circular Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1521601. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1521601.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11735848 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11735848.
Yes. We ship 1521601 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1521601. The product has a current rating of 4a. It is a type of a coded mating. It is IP rated with ip65, ip67. Whereas, the minimum operating temperature of the product is -25°c. The product sacc, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 250 v voltage rating. The product is coded with a. This female contact is widely suited for specific applications. The product also features robust pa6 housing material. It comprises a socket. The connector has m12 size. The high-quality nickel is used as contact plating material. The shell has 15mm size. Moreover, the product is unshielded . The product contains 4 contacts. Its outer diameter is 4 → 8mm. It has a maximum operating temperature of +80°c. The product is made from sturdy cusn materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. Moreover, the product has a nominal 250v voltage rating. The product has -25°c ~ 80°c operating temperature range. The product carries possible position value of 4. It has nice contact finishing of gold. The product is plated with reliable polyamide (pa6), nylon 6 material. Cable opening features include 0.157" ~ 0.315" (4.00mm ~ 8.00mm). It is made from highly reliable zinc die cast materials. In addition, it is reach unaffected. Additionally, the product's output is 4a. The basic product material is metal. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . The insert's size is m12-4. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-twist is the Fastening Type of the product. The product features idc termination style. It has a long 8 weeks standard lead time. While it is also supplied with highly stable thermoplastic polyurethane (tpu) insert material. The product has a a orientation. It is IP rated with ip65/ip67 - dust tight, water resistant, waterproof. The splendid features of the product include backshell, coupling nut. The product is available in free hanging (in-line) configuration. The shell is an excellent finishing of nickel. It has a classic black, silver colour. The product is made from sturdy copper tin materials. The product is designated with the ear99 code number.
