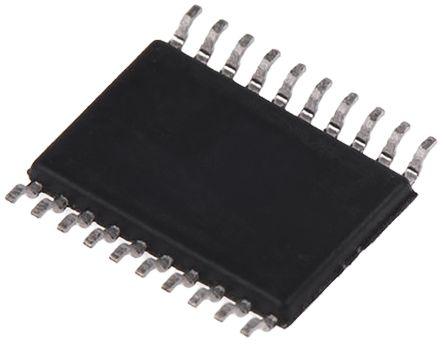

NXP 74HCT541PW Octal Buffer & Line Driver, 3-State, 5V, 20-Pin TSSOP
Product Information
Polarity:
Non-Inverting
Dimensions:
6.6 x 4.5 x 0.95mm
Minimum Operating Supply Voltage:
4.5 V
Logic Family:
74HCT
Width:
4.5mm
Input Type:
TTL
Maximum Low Level Output Current:
6mA
Maximum High Level Output Current:
-6mA
Maximum Propagation Delay Time @ Maximum CL:
42ns
Number of Channels per Chip:
8
Output Type:
3 State
Package Type:
TSSOP
Maximum Operating Temperature:
+125 °C
Board Level Components:
Y
Length:
6.6mm
Pin Count:
20
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
Buffer, Line Driver
Height:
0.95mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search 74HCT541PW on website for other similar products.
We accept all major payment methods for all products including ET14058767. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74HCT541PW directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Buffer & Line Driver Combinations category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP 74HCT541PW Octal Buffer & Line Driver, 3-State, 5V, 20-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on NXP 74HCT541PW Octal Buffer & Line Driver, 3-State, 5V, 20-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14058767 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14058767.
Yes. We ship 74HCT541PW Internationally to many countries around the world.
This is NXP Octal Buffer & Line Driver 3-State 5V 20-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74HCT541PW. While providing non-inverting polarity. The given dimensions of the product include 6.6 x 4.5 x 0.95mm. While its minimum operating supply voltage is 4.5 v. The logic family is 74hct. Furthermore, the product is 4.5mm wide. It carries ttl input type. On the other hand, it is featured with 6ma of max. low level output current. While a -6ma of maximum high level output current. It provides up to 42ns maximum propagation delay time. It comprises 8 channels per chip. Furthermore, it has a3 state output. The package is a sort of tssop. It has a maximum operating temperature of +125 °c. It has board level components y . Its accurate length is 6.6mm. It contains 20 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes buffer, line driver. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.
