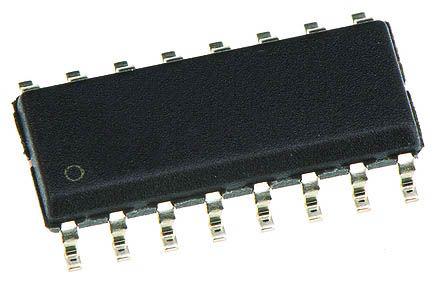

Nexperia 74HC365D Hex Buffer & Line Driver, 3-State, Inverting, 16-Pin SOIC

74HC365D Nexperia  Hex Buffer & Line Driver, 3-State, Inverting, 16-Pin SOIC
Nexperia

Product Information

Polarity:
Inverting
Dimensions:
10 x 4 x 1.45mm
Minimum Operating Supply Voltage:
2 V
Logic Family:
74HC
Width:
4mm
Input Type:
CMOS, TTL
Maximum Low Level Output Current:
7.8mA
Maximum High Level Output Current:
-7.8mA
Maximum Propagation Delay Time @ Maximum CL:
145 ns@ 50 pF
Number of Channels per Chip:
6
Output Type:
3 State
Package Type:
SOIC
Maximum Operating Temperature:
+125 °C
Length:
10mm
Pin Count:
16
Maximum Operating Supply Voltage:
6 V
Mounting Type:
Surface Mount
Logic Function:
Hex Buffer, Line Driver
Height:
1.45mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Hex Buffer & Line Driver 3-State Inverting 16-Pin SOIC manufactured by Nexperia. The manufacturer part number is 74HC365D. While providing inverting polarity. The given dimensions of the product include 10 x 4 x 1.45mm. While its minimum operating supply voltage is 2 v. The logic family is 74hc. Furthermore, the product is 4mm wide. It carries cmos, ttl input type. On the other hand, it is featured with 7.8ma of max. low level output current. While a -7.8ma of maximum high level output current. It provides up to 145 ns@ 50 pf maximum propagation delay time. It comprises 6 channels per chip. Furthermore, it has a3 state output. The package is a sort of soic. It has a maximum operating temperature of +125 °c. Its accurate length is 10mm. It contains 16 pins. It has 6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes hex buffer, line driver. In addition, the height is 1.45mm. Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.

pdf icon
Hex Buffer/Line Driver; 3-State Datasheet(Technical Reference)
pdf icon
74HC365; 74HCT365, Hex Buffer/Line Driver; 3-State(Technical Reference)
