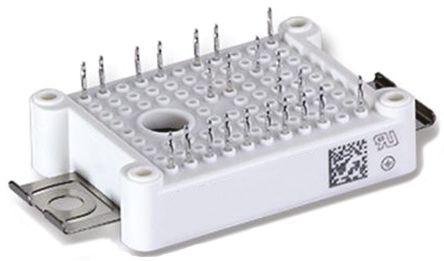

Infineon DDB6U75N16W1R, 3-phase Bridge Rectifier + IGBT, 75A 1600V, 27-Pin

DDB6U75N16W1R Infineon , 3-phase Bridge Rectifier + IGBT, 75A 1600V, 27-Pin
Infineon

Product Information

Dimensions:
48 x 33.8 x 12mm
Bridge Type:
Three Phase
Peak Non-Repetitive Forward Surge Current:
605A
Peak Average Forward Current:
75A
Height:
12mm
Peak Reverse Current:
1mA
Width:
33.8mm
Length:
48mm
Peak Forward Voltage:
1.1V
Peak Reverse Repetitive Voltage:
1600V
Minimum Operating Temperature:
-40 °C
Mounting Type:
PCB Mount
Configuration:
Single Plus MOSFET
Maximum Operating Temperature:
+150 °C
Pin Count:
27
RoHs Compliant
Checking for live stock

This is 3-phase Bridge Rectifier + IGBT 75A 1600V 27-Pin manufactured by Infineon. The manufacturer part number is DDB6U75N16W1R. The given dimensions of the product include 48 x 33.8 x 12mm. It contains a/an three phase type bridge . Moreover, a bespoke product has 605a peak non-repetitive forward surge current. Additionally, it has about 75a of peak average forward current . In addition, the height is 12mm. It has a typical 1ma peak reverse current . Furthermore, the product is 33.8mm wide. Its accurate length is 48mm. Whereas, the peak forward voltage is about 1.1v . While having the peak reverse repetitive 1600v. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in pcb mount configuration. The product is available in single plus mosfet configuration. It has a maximum operating temperature of +150 °c. It contains 27 pins.
