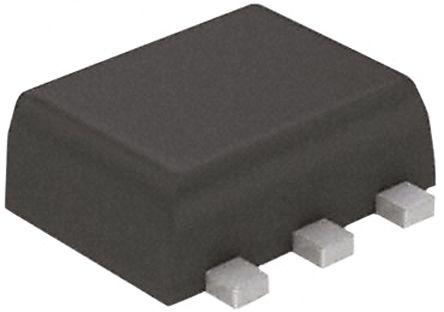

Diodes Inc MMDT2222V-7 Dual NPN Transistor, 600 mA, 40 V, 6-Pin SOT-563

MMDT2222V-7 Diodes Inc Dual NPN Transistor, 600 mA, 40 V, 6-Pin SOT-563
MMDT2222V-7
DiodesZetex

Product Information

Dimensions:
1.7 x 1.25 x 0.6mm
Maximum Collector Emitter Saturation Voltage:
1 V
Width:
1.25mm
Transistor Configuration:
Isolated
Maximum Operating Frequency:
300 MHz
Package Type:
SOT-563
Number of Elements per Chip:
2
Maximum Operating Temperature:
+150 °C
Transistor Type:
NPN
Maximum Collector Base Voltage:
75 V
Maximum Base Emitter Saturation Voltage:
2 V
Maximum Emitter Base Voltage:
6 V
Length:
1.7mm
Maximum DC Collector Current:
600 mA
Pin Count:
6
Minimum DC Current Gain:
300
Mounting Type:
Surface Mount
Maximum Power Dissipation:
150 mW
Maximum Collector Emitter Voltage:
40 V
Height:
0.6mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Diodes Inc Dual NPN Transistor 600 mA 40 V 6-Pin SOT-563 manufactured by DiodesZetex. The manufacturer part number is MMDT2222V-7. The given dimensions of the product include 1.7 x 1.25 x 0.6mm. The product has a maximum 1 v collector emitter saturation voltage . Furthermore, the product is 1.25mm wide. The product offers isolated transistor configuration. It carries 300 mhz of maximum operating frequency. The package is a sort of sot-563. It consists of 2 elements per chip. It has a maximum operating temperature of +150 °c. The transistor is a npn type. Additionally, it has 75 v maximum collector base voltage. In addition, the product has a maximum 2 v base emitter saturation voltage . It features a 6 v of maximum emitter base voltage. Its accurate length is 1.7mm. Moreover, it has a maximum DC collector current of 600 ma. It contains 6 pins. It features up to 300 of minimum DC current gain. The product is available in surface mount configuration. Provides up to 150 mw maximum power dissipation. Whereas features a 40 v of collector emitter voltage (max). In addition, the height is 0.6mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
Dual NPN Small Signal Surface Mount Transistor Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search MMDT2222V-7 on website for other similar products.
We accept all major payment methods for all products including ET14058506. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with MMDT2222V-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in BJT & Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc MMDT2222V-7 Dual NPN Transistor, 600 mA, 40 V, 6-Pin SOT-563. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc MMDT2222V-7 Dual NPN Transistor, 600 mA, 40 V, 6-Pin SOT-563.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14058506 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14058506.
Yes. We ship MMDT2222V-7 Internationally to many countries around the world.
