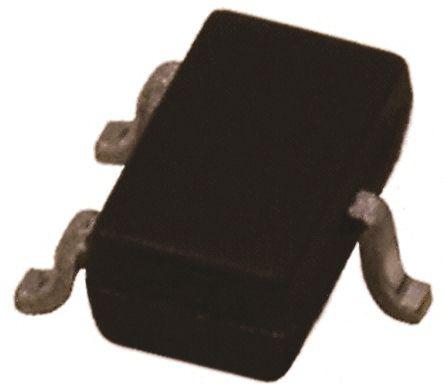

Diodes Inc MMBT4403T-7-F PNP Transistor, 0.6 A, 40 V, 3-Pin SOT-523

MMBT4403T-7-F Diodes Inc PNP Transistor, 0.6 A, 40 V, 3-Pin SOT-523
MMBT4403T-7-F
DiodesZetex

Product Information

Dimensions:
1.7 x 0.85 x 0.8mm
Maximum Collector Emitter Saturation Voltage:
-0.75 V
Width:
0.85mm
Transistor Configuration:
Single
Maximum Operating Frequency:
200 MHz
Package Type:
SOT-523 (SC-89)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
PNP
Maximum Collector Base Voltage:
-40 V
Maximum Base Emitter Saturation Voltage:
-1.3 V
Maximum Emitter Base Voltage:
-5 V
Length:
1.7mm
Maximum DC Collector Current:
600 mA
Pin Count:
3
Minimum DC Current Gain:
300
Mounting Type:
Surface Mount
Maximum Power Dissipation:
150 mW
Maximum Collector Emitter Voltage:
40 V
Height:
0.8mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Diodes Inc PNP Transistor 0.6 A 40 V 3-Pin SOT-523 manufactured by DiodesZetex. The manufacturer part number is MMBT4403T-7-F. The given dimensions of the product include 1.7 x 0.85 x 0.8mm. The product has a maximum -0.75 v collector emitter saturation voltage . Furthermore, the product is 0.85mm wide. The product offers single transistor configuration. It carries 200 mhz of maximum operating frequency. The package is a sort of sot-523 (sc-89). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. The transistor is a pnp type. Additionally, it has -40 v maximum collector base voltage. In addition, the product has a maximum -1.3 v base emitter saturation voltage . It features a -5 v of maximum emitter base voltage. Its accurate length is 1.7mm. Moreover, it has a maximum DC collector current of 600 ma. It contains 3 pins. It features up to 300 of minimum DC current gain. The product is available in surface mount configuration. Provides up to 150 mw maximum power dissipation. Whereas features a 40 v of collector emitter voltage (max). In addition, the height is 0.8mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
PNP Small Signal Surface Mount Transistor Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
