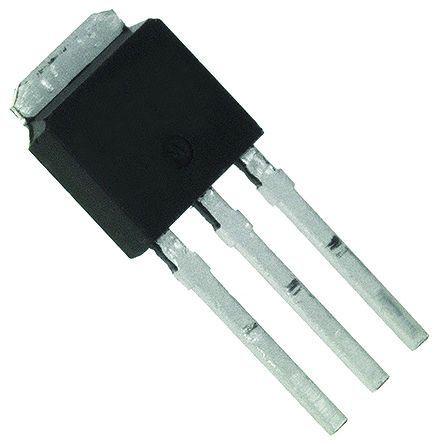

Taiwan Semiconductor TSC5802DCH C5G NPN Transistor, 2.5 A, 1050 V, 3-Pin IPAK

TSC5802DCH-C5G Taiwan Semiconductor TSC5802DCH C5G NPN Transistor, 2.5 A, 1050 V, 3-Pin IPAK
Taiwan Semiconductor

Product Information

Minimum DC Current Gain:
18
Transistor Type:
NPN
Dimensions:
6.5 x 2.3 x 7mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
30 W
Maximum Collector Emitter Saturation Voltage:
3 V
Maximum Collector Base Voltage:
1050 V
Maximum Collector Emitter Voltage:
1050 V
Maximum Base Emitter Saturation Voltage:
1.6 V
Height:
7mm
Width:
2.3mm
Length:
6.5mm
Package Type:
IPAK (TO-251)
Number of Elements per Chip:
1
Maximum DC Collector Current:
2.5 A
Maximum Emitter Base Voltage:
15 V
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is NPN Transistor 2.5 A 1050 V 3-Pin IPAK manufactured by Taiwan Semiconductor. The manufacturer part number is TSC5802DCH C5G. It features up to 18 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 6.5 x 2.3 x 7mm. The product is available in through hole configuration. Provides up to 30 w maximum power dissipation. The product has a maximum 3 v collector emitter saturation voltage . Additionally, it has 1050 v maximum collector base voltage. Whereas features a 1050 v of collector emitter voltage (max). In addition, the product has a maximum 1.6 v base emitter saturation voltage . In addition, the height is 7mm. Furthermore, the product is 2.3mm wide. Its accurate length is 6.5mm. The package is a sort of ipak (to-251). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 2.5 a. It features a 15 v of maximum emitter base voltage. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
TSC5802D, High Voltage Fast-Switching NPN Power Transistor(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
