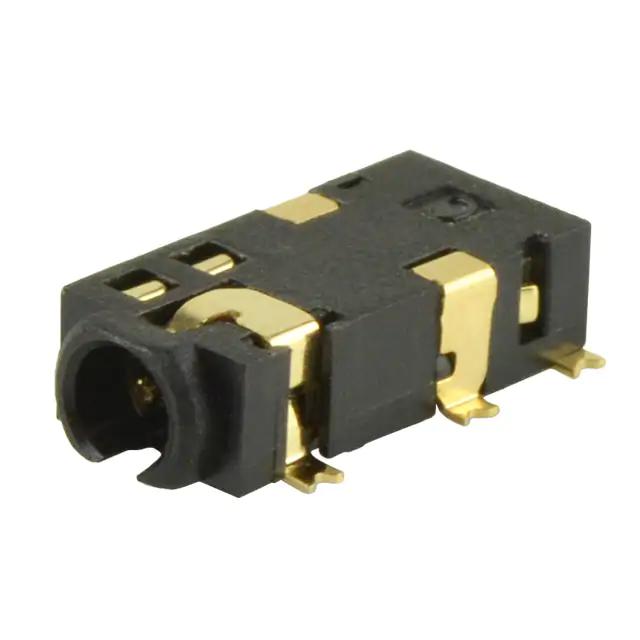

CUI Inc. SJ2-25934D1-SMT-TR

SJ2-25934D1-SMT-TR CUI Inc.
CUI Inc.

Product Information

Manufacturer Standard Lead Time:
6 Weeks
Detailed Description:
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack 5 Conductor (TRRRS) Connector Solder
Actual Diameter:
0.102" (2.60mm)
Voltage - Rated:
12VDC
Housing Material:
Polyamide (PA10T), Nylon 10T
Operating Temperature:
-25°C ~ 85°C
Contact Material - Plating:
Gold
Shielding:
Unshielded
Number of Positions/Contacts:
5 Conductors, 7 Contacts
Internal Switch(s):
Single Switch
Signal Lines:
5 Conductor (TRRRS)
Industry Recognized Mating Diameter:
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Manufacturer:
CUI Inc.
Gender:
Female
Connector Type:
Phone Jack
Termination:
Solder
Current Rating (Amps):
1A
Body Color:
Black
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle
Mating Length/Depth:
0.433" (11.00mm)
Series:
SJ2
Packaging:
Cut Tape (CT)
Contact Material:
Copper Alloy
Checking for live stock

This is manufactured by CUI Inc.. The manufacturer part number is SJ2-25934D1-SMT-TR. It has typical 6 weeks of manufacturer standard lead time. It features 2.50mm (0.094", 3/32", sub mini, miniature) - headphone phone jack 5 conductor (trrrs) connector solder. Its actual diameter is 0.102" (2.60mm). It also exhibits voltage rating of 12vdc. The product also features robust polyamide (pa10t), nylon 10t housing material. The product has -25°c ~ 85°c operating temperature range. While the contact is gold. Furthermore, the product is shielded with unshielded. The product consists of 5 conductors, 7 contacts positions or contacts. Internal switch options: single switch. Features 5 conductor (trrrs) signal lines. The product has 2.50mm (0.094", 3/32", sub mini, miniature) - headphone industrial recognised mating diameter. The cui inc.'s product offers user-desired applications. In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 1a. The body has a classic black colour. The splendid features of the product include board guide. The product is available in surface mount, right angle configuration. The product has 0.433" (11.00mm) mating length or depth. The product sj2, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. The product is made from sturdy copper alloy materials.
