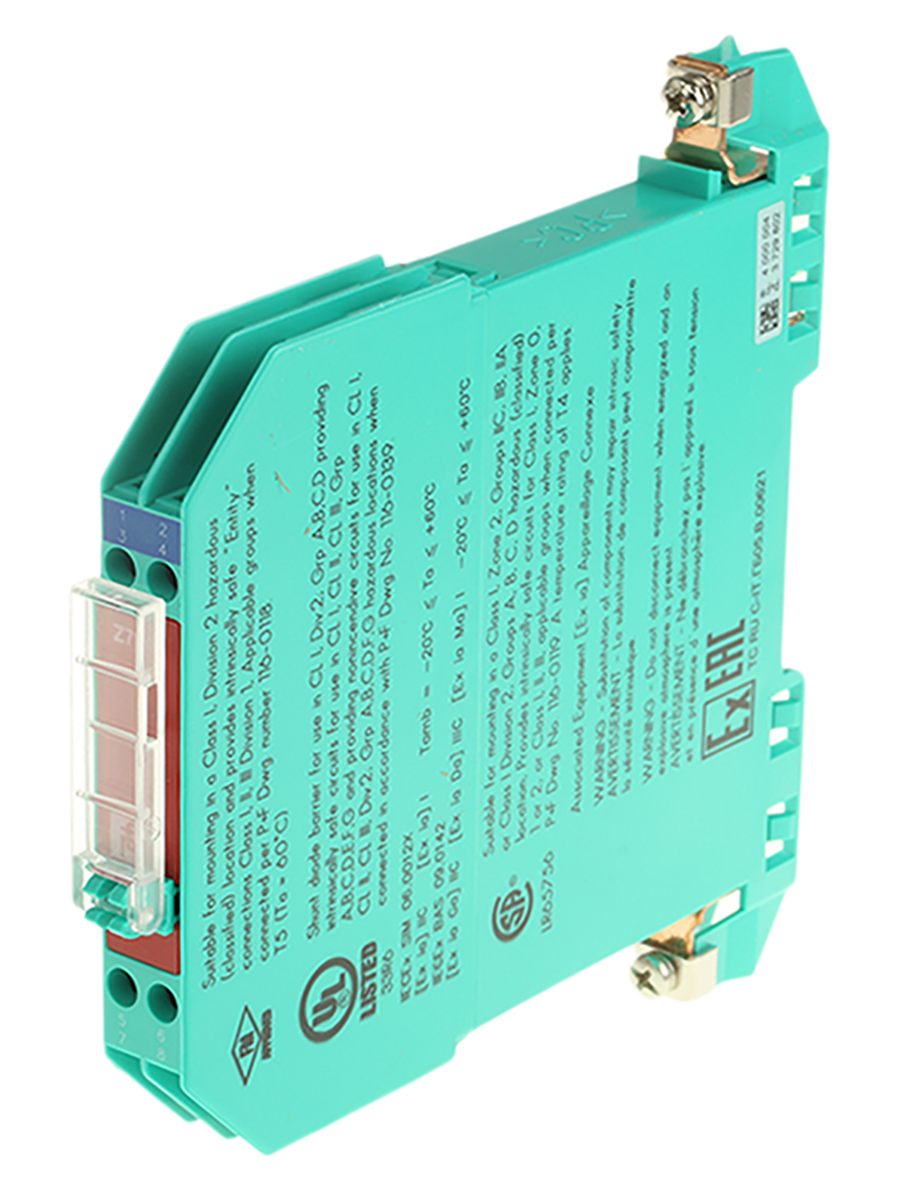

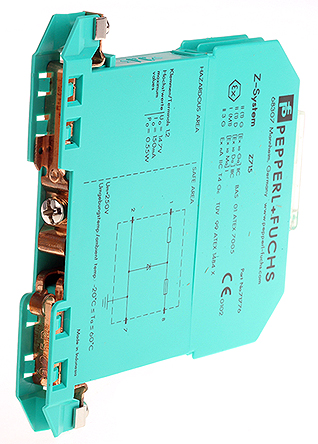

Pepperl + Fuchs 1 Channel Zener Barrier with Analogue Output, 250 V max, 150mA max

Enrgtech Part No: ET13838178
|
Manufacturer Part No:
Z715
|
Manufacturer: Pepperl + Fuchs

Z715 Pepperl + Fuchs 1 Channel Zener Barrier with Analogue Output, 250 V max, 150mA max

Product Information

Maximum Current:

150mA

Maximum Voltage:

250V

Safety Current Maximum:

150mA

Module Type:

Zener Barrier

Safety Voltage Maximum:

250 V

Barrier Type:

Zener Barrier

Hazardous Area Certification:

ATEX

Number of Channels:

Supply Voltage:

13.3V dc

Minimum Operating Temperature:

-20°C

Operating Temperature Range:

-20 → +60°C

Maximum Operating Temperature:

+60°C

Checking for live stock

The Pepperl + Fuchs Z715 is a single‑channel zener barrier designed for intrinsic safety applications that interface analogue or signal circuits between safe and hazardous areas. It supports a compact DIN-rail-mounting format in a modular housing. With positive polarity and approvals for zone/division hazardous area use, it provides energy‑limited protection while retaining signal integrity for process instrumentation.

Salient Features and Benefits of the Pepperl + Fuchs 1 Channel Zener Barrier

Single‑channel design simplifies loop count in control cabinet layouts.
Positive‑polarity barrier supports standard intrinsically safe system topology.
Series resistance max. ~107 Ω helps regulate energy transfer.
DIN‑rail mountable module streamlines panel installation and grounding.
Fuse rating 100 mA allows integration with higher‑current ancillary circuits.
Certifications for Zone 0/1/2 and Division 1/2 ensure suitability for hazardous areas.

Engineered for Intrinsically Safe Applications

The Z715 barrier is built to establish a compliant interface between non‑intrinsically safe control systems in the safe zone and intrinsically safe field instrumentation in hazardous zones. Its internal components, including the zener diodes, current‑limiting resistor and fuse, prevent excessive energy transfer under fault conditions. When the breakdown voltage is exceeded, the fuse opens and isolates the hazardous‑area circuit, maintaining safety integrity.

Wide Application Range

Linking 4‑20 mA analogue transmitters in Zone 0/1 hazardous locations to safe‑area control systems.
Panel‑mounted barrier modules in oil & gas facilities, petrochemical plants or chemical processing units.
Instrumentation loops requiring ATEX/IECEx-approved intrinsic‑safety barriers with DIN‑rail installation.
Control cabinets housing SCADA or DCS interfaces.
Retrofits or expansions of factory automation systems.
