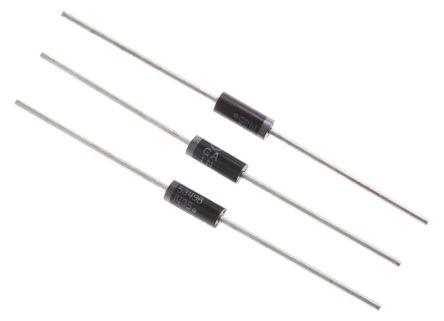

ON Semiconductor Zener Diode, 12V 5% 5 W Through Hole 2-Pin DO-15

1N5349BG ON Semiconductor Zener Diode, 12V 5% 5 W Through Hole 2-Pin DO-15
ON Semiconductor

Product Information

Nominal Zener Voltage:
12V
Dimensions:
8.89 x 3.68 x 3.68mm
Mounting Type:
Through Hole
Maximum Zener Impedance:
2.5Ω
Maximum Operating Temperature:
+200 °C
Maximum Reverse Leakage Current:
2µA
Maximum Power Dissipation:
5 W
Package Type:
DO-15
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
100mA
RoHs Compliant
Checking for live stock

This is Zener Diode 12V 5% 5 W Through Hole 2-Pin DO-15 manufactured by ON Semiconductor. The manufacturer part number is 1N5349BG. Its nominal Zener voltage is 12v. The given dimensions of the product include 8.89 x 3.68 x 3.68mm. The product is available in through hole configuration. While it has 2.5ω of maximum Zener impedance. It has a maximum operating temperature of +200 °c. The product has a maximum 2µa of reverse leakage current. Provides up to 5 w maximum power dissipation. The package is a sort of do-15. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of voltage regulator Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 100ma test current.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 1N5349BG on website for other similar products.
We accept all major payment methods for all products including ET16727064. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with 1N5349BG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor Zener Diode, 12V 5% 5 W Through Hole 2-Pin DO-15. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor Zener Diode, 12V 5% 5 W Through Hole 2-Pin DO-15.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16727064 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16727064.
Yes. We ship 1N5349BG Internationally to many countries around the world.
