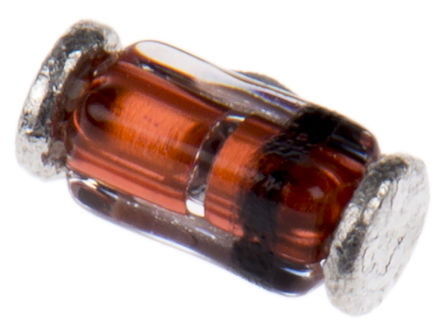

This is Zener Diode 15V 6% 500 mW SMT QuadroMELF SOD-80 manufactured by Vishay. The manufacturer part number is BZT55C15-GS08. Its nominal Zener voltage is 15v. The given dimensions of the product include 3.7 (l) x 1.6 (h)mm. The product is available in surface mount configuration. It features 200ma forward current. The product has a typical 0.03 → 0.11%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum <100 (25°c) na, 2 (150°c) μa of reverse leakage current. While it has <30ω of maximum Zener impedance. The forward voltage is 1.5v. The package is a sort of quadromelf sod-80. It consists of 1 elements per chip. Provides up to 500 mw maximum power dissipation. The Zener is a type of general purpose Zener with unique features. It has 6% Zener voltage tolerance. The diode features a single configuration. In addition, it has 1 ma, 5ma test current.
Small Signal Zener Diodes Datasheet(Technical Reference)
ESD Control Selection Guide V1(Technical Reference)
