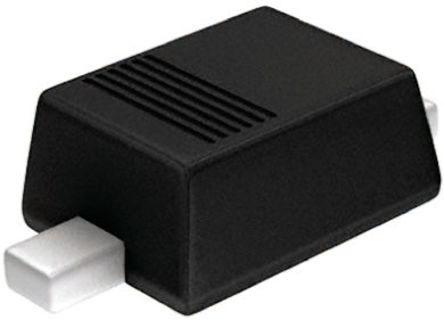

Diodes Inc Zener Diode, 14.3V 3% 500 mW SMT 2-Pin SOD-323F

DDZ15BSF-7 Diodes Inc Zener Diode, 14.3V 3% 500 mW SMT 2-Pin SOD-323F
DiodesZetex

Product Information

Nominal Zener Voltage:
14.3V
Dimensions:
1.8 x 1.35 x 0.75mm
Mounting Type:
Surface Mount
Forward Current:
10mA
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
70nA
Maximum Zener Impedance:
40Ω
Forward Voltage:
0.9V
Package Type:
SOD-323F
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Power Dissipation:
500 mW
Zener Type:
Precision
Zener Voltage Tolerance:
3%
Diode Configuration:
Single
Pin Count:
2
Test Current:
10mA
RoHs Compliant
Checking for live stock

This is Diodes Inc Zener Diode 14.3V 3% 500 mW SMT 2-Pin SOD-323F manufactured by DiodesZetex. The manufacturer part number is DDZ15BSF-7. Its nominal Zener voltage is 14.3v. The given dimensions of the product include 1.8 x 1.35 x 0.75mm. The product is available in surface mount configuration. It features 10ma forward current. It has a maximum operating temperature of +150 °c. The product has a maximum 70na of reverse leakage current. While it has 40ω of maximum Zener impedance. The forward voltage is 0.9v. The package is a sort of sod-323f. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Provides up to 500 mw maximum power dissipation. The Zener is a type of precision Zener with unique features. It has 3% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 10ma test current.

pdf icon
DDZ2V4ASF - DDZ39DSF, 0.5W Surface Mount Precision Zener Diode(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DDZ15BSF-7 on website for other similar products.
We accept all major payment methods for all products including ET14108415. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with DDZ15BSF-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc Zener Diode, 14.3V 3% 500 mW SMT 2-Pin SOD-323F. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc Zener Diode, 14.3V 3% 500 mW SMT 2-Pin SOD-323F.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14108415 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14108415.
Yes. We ship DDZ15BSF-7 Internationally to many countries around the world.
