Diodes Inc Zener Diode, 5.6V 2% 200 mW SMT 2-Pin SOD-323

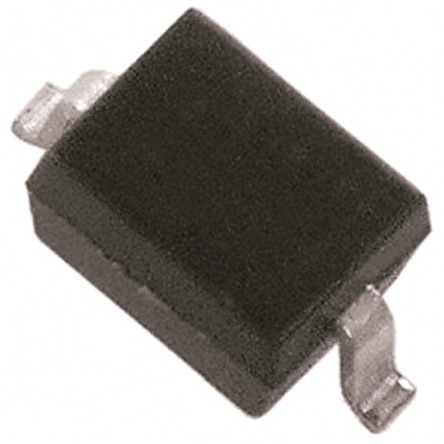

UDZ5V6B-7 Diodes Inc Zener Diode, 5.6V 2% 200 mW SMT 2-Pin SOD-323
DiodesZetex

Product Information

Nominal Zener Voltage:
5.6V
Dimensions:
1.8 x 1.4 x 1.1mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
60Ω
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Maximum Power Dissipation:
200 mW
Package Type:
SOD-323
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Zener Type:
General Purpose
Zener Voltage Tolerance:
2%
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Diodes Inc Zener Diode 5.6V 2% 200 mW SMT 2-Pin SOD-323 manufactured by DiodesZetex. The manufacturer part number is UDZ5V6B-7. Its nominal Zener voltage is 5.6v. The given dimensions of the product include 1.8 x 1.4 x 1.1mm. The product is available in surface mount configuration. While it has 60ω of maximum Zener impedance. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. Provides up to 200 mw maximum power dissipation. The package is a sort of sod-323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of general purpose Zener with unique features. It has 2% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
Surface Mount Precision Zener Diode Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search UDZ5V6B-7 on website for other similar products.
We accept all major payment methods for all products including ET14058567. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with UDZ5V6B-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc Zener Diode, 5.6V 2% 200 mW SMT 2-Pin SOD-323. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc Zener Diode, 5.6V 2% 200 mW SMT 2-Pin SOD-323.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14058567 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14058567.
Yes. We ship UDZ5V6B-7 Internationally to many countries around the world.
