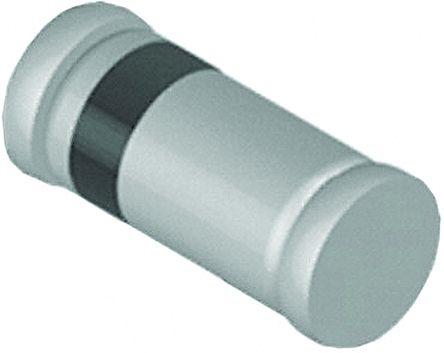

Vishay Zener Diode, 3.3V 5% 500 mW SMT 2-Pin SOD-80

TZS4684-GS08 Vishay Zener Diode, 3.3V 5% 500 mW SMT 2-Pin SOD-80
Vishay

Product Information

Nominal Zener Voltage:
3.3V
Dimensions:
3.7 x 1.6 x 1.6mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
500 mW
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
7.5µA
Height:
1.6mm
Width:
1.6mm
Length:
3.7mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Package Type:
SOD-80
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
0.05mA
RoHs Compliant
Checking for live stock

This is Zener Diode 3.3V 5% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is TZS4684-GS08. Its nominal Zener voltage is 3.3v. The given dimensions of the product include 3.7 x 1.6 x 1.6mm. The product is available in surface mount configuration. Provides up to 500 mw maximum power dissipation. It has a maximum operating temperature of +175 °c. The product has a maximum 7.5µa of reverse leakage current. In addition, the height is 1.6mm. Furthermore, the product is 1.6mm wide. Its accurate length is 3.7mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. The package is a sort of sod-80. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 0.05ma test current.

pdf icon
TZS4678 to TZS4717, Small Signal Zener Diodes(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TZS4684-GS08 on website for other similar products.
We accept all major payment methods for all products including ET13977633. Please check your shopping cart at the time of order.
You can order Vishay brand products with TZS4684-GS08 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay Zener Diode, 3.3V 5% 500 mW SMT 2-Pin SOD-80. You can also check on our website or by contacting our customer support team for further order details on Vishay Zener Diode, 3.3V 5% 500 mW SMT 2-Pin SOD-80.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13977633 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13977633.
Yes. We ship TZS4684-GS08 Internationally to many countries around the world.
