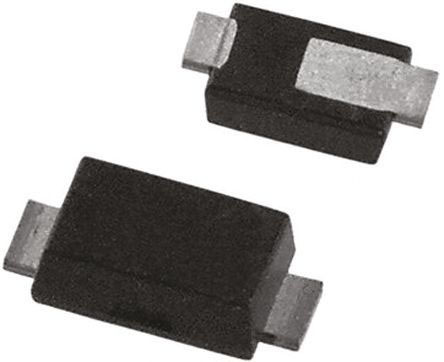

Toshiba Zener Diode, 15V 0.7 W SMT 2-Pin S-FLAT

CRZ15-TE85L-Q-M- Toshiba Zener Diode, 15V 0.7 W SMT 2-Pin S-FLAT
CRZ15(TE85L,Q,M)
Toshiba

Product Information

Nominal Zener Voltage:
15V
Dimensions:
2.6 x 1.6 x 0.98mm
Mounting Type:
Surface Mount
Forward Current:
0.2A
Typical Voltage Temperature Coefficient:
11mV/°C
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
10µA
Maximum Zener Impedance:
30Ω
Forward Voltage:
1V
Package Type:
S-FLAT
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Maximum Power Dissipation:
700 mW
Zener Type:
Transient Suppressor
Diode Configuration:
Single
Pin Count:
2
Test Current:
10mA
RoHs Compliant
Checking for live stock

This is Zener Diode 15V 0.7 W SMT 2-Pin S-FLAT manufactured by Toshiba. The manufacturer part number is CRZ15(TE85L,Q,M). Its nominal Zener voltage is 15v. The given dimensions of the product include 2.6 x 1.6 x 0.98mm. The product is available in surface mount configuration. It features 0.2a forward current. The product has a typical 11mv/°c voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 10µa of reverse leakage current. While it has 30ω of maximum Zener impedance. The forward voltage is 1v. The package is a sort of s-flat. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. Provides up to 700 mw maximum power dissipation. The Zener is a type of transient suppressor Zener with unique features. The diode features a single configuration. It contains 2 pins. In addition, it has 10ma test current.

pdf icon
CRY62 to CRZ39, Zener Diode, Surge Absorber(Technical Reference)
