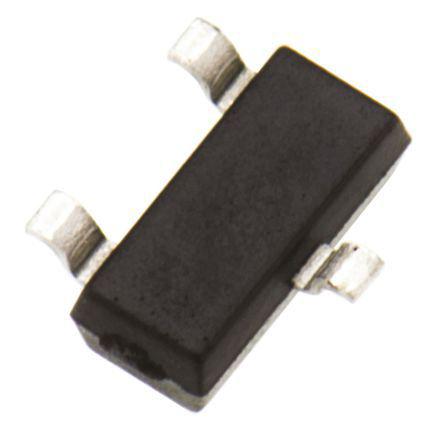

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo
manufacturer logo

Manufacturer : Vishay
Manufacturer Part No : BZX84C9V1-E3-08
Enrgtech Part No : ET13921838
Product Range : PolySwitch RXEF Series

Vishay Zener Diode, 9.1V ±5% 300 mW SMT 3-Pin SOT-23

Zener Diodes 300mW, BZX84 Series, Vishay Semiconductor Zener Voltage Tolerance of 2% (BZX84B) and approx. 5% (BZX84C) Surface Mount case: SOT-23 Zener Diodes, Vishay Semiconductor

Product Information

Nominal Zener Voltage : 9.1V
Dimensions : 3.1 x 1.43 x 1.15mm
Mounting Type : Surface Mount
Maximum Zener Impedance : 15Ω
Maximum Operating Temperature : +150 °C
Maximum Reverse Leakage Current : 500nA
Maximum Power Dissipation : 300 mW
Package Type : SOT-23
Number of Elements per Chip : 1
Minimum Operating Temperature : -55 °C
Zener Type : General Purpose
Zener Voltage Tolerance : ±5%
Diode Configuration : Single
Pin Count : 3
rohs : RoHS Certificate of Compliance
Test Current : 1 mA, 5 mA

Technical Documents

  • Small Signal Zener Diodes Datasheet (Technical Reference)
  • ESD Control Selection Guide V1 (Technical Reference)

Availability:
500
in stock
Check now

Rate:
  • 250-250
    +
    £ 0.054
  • 500-750
    +
    £ 0.043
  • 1000-1750
    +
    £ 0.029

Qty:
