Zener Diode 13V 5% 500mW Auto DO-35

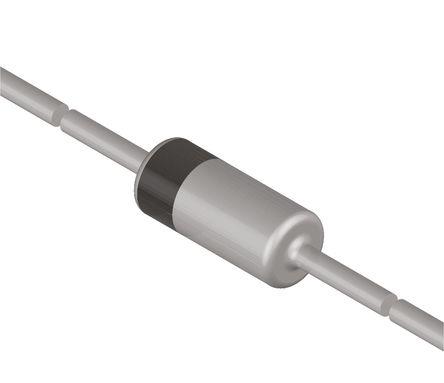

1N5243B-TAP Zener Diode 13V 5% 500mW Auto DO-35
1N5243B-TAP
Vishay

Product Information

Nominal Zener Voltage:
13V
Dimensions:
1.7 (Dia.) x 3.9mm
Mounting Type:
Through Hole
Forward Current:
200mA
Typical Voltage Temperature Coefficient:
0.079%/K
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
500 nA @ 9.9 V
Maximum Zener Impedance:
13Ω
Forward Voltage:
1.1V
Package Type:
DO-35
Number of Elements per Chip:
1
Maximum Power Dissipation:
500 mW
Zener Type:
General Purpose
Zener Voltage Tolerance:
±5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
9.5mA
RoHs Compliant
Checking for live stock

This is Zener Diode 13V 5% 500mW Auto DO-35 manufactured by Vishay. The manufacturer part number is 1N5243B-TAP. Its nominal Zener voltage is 13v. The given dimensions of the product include 1.7 (dia.) x 3.9mm. The product is available in through hole configuration. It features 200ma forward current. The product has a typical 0.079%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum 500 na @ 9.9 v of reverse leakage current. While it has 13ω of maximum Zener impedance. The forward voltage is 1.1v. The package is a sort of do-35. It consists of 1 elements per chip. Provides up to 500 mw maximum power dissipation. The Zener is a type of general purpose Zener with unique features. It has ±5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 9.5ma test current.

pdf icon
1N5221 to 1N5267, Small Signal Zener Diodes(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
