Manufacturer : Molex
Manufacturer Part No : 15135-0206
Enrgtech Part No : ET16777685
Product Range : PolySwitch RXEF Series

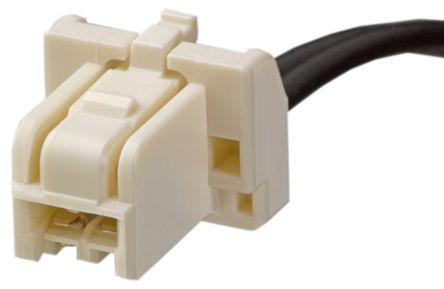

Molex CLIK-Mate OTS 15135 Series Number Wire to Board Cable Assembly 1 Row, 2 Way 1 Row 2 Way, 600mm

Molex CLIK-Mate Discrete Wire Cable Assemblies - 15135 Series CLIK-Mate wire-to-board cable assemblies in a range of cable lengths terminated either end with a CLIK-Mate 1.5 mm pitch male plug connector. These CLIK-Mate connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. Pin to pin mapping from the receptacle to the PCB header provides ready to use plug and play connections. The CLIK-Mate connectors have a space saving 1.5 mm pitch and a robust design. A positive locking system ensures that the cable assembly is securely attached to the mating connector providing an audible click to confirm when mating is complete. The connector housings also feature mating guides and keying to prevent mismating. These CLIK-Mate cable assemblies are designed for use with series 503395, 503175, 502585, 503159, 502584 and 505405 CLIK-Mate PCB headers Features and Benefits • Constructed using UL1061 discrete wires for ease of design • Pin to pin mapping • 2.5 A maximum current rating in compact 1.5mm pitch • Positive locks on connector housings for secure mating connection • Keying and mating guides • Audible click to confirm mating • Available in a range of cable lengths Product Application Information CLIK-Mate wire-to-board cable assemblies are ideal for use in prototype design and global applications in range of industries. In the consumer industry applications include fitness equipment, home entertainment systems, home appliances, portable electronic devices and mobile devices. Other industries include commercial vehicles, industrial (process controls) and medical (patient monitors) Molex 2.00 mm CLIK-Mate Wire to Board Connector System CLIK-Mate 2.00 mm wire to board connector system with a rugged design and a high current carrying capability of 3.0 A and 250 V. The 2.00mm CLIK-M...
Molex CLIK-Mate Discrete Wire Cable Assemblies - 15135 Series CLIK-Mate wire-to-board cable assemblies in a range of cable lengths terminated either end with a CLIK-Mate 1.5 mm pitch male plug connector. These CLIK-Mate connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. Pin to pin mapping from the receptacle to the PCB header provides ready to use plug and play connections. The CLIK-Mate connectors have a space saving 1.5 mm pitch and a robust design. A positive locking system ensures that the cable assembly is securely attached to the mating connector providing an audible click to confirm when mating is complete. The connector housings also feature mating guides and keying to prevent mismating. These CLIK-Mate cable assemblies are designed for use with series 503395, 503175, 502585, 503159, 502584 and 505405 CLIK-Mate PCB headers Features and Benefits • Constructed using UL1061 discrete wires for ease of design • Pin to pin mapping • 2.5 A maximum current rating in compact 1.5mm pitch • Positive locks on connector housings for secure mating connection • Keying and mating guides • Audible click to confirm mating • Available in a range of cable lengths Product Application Information CLIK-Mate wire-to-board cable assemblies are ideal for use in prototype design and global applications in range of industries. In the consumer industry applications include fitness equipment, home entertainment systems, home appliances, portable electronic devices and mobile devices. Other industries include commercial vehicles, industrial (process controls) and medical (patient monitors) Molex 2.00 mm CLIK-Mate Wire to Board Connector System CLIK-Mate 2.00 mm wire to board connector system with a rugged design and a high current carrying capability of 3.0 A and 250 V. The 2.00mm CLIK-Mate connector system provides a secure electrical connection with a low insertion force. Dual inner positive locks produce an audible click when the connectors are mated providing reliable mating assurance. The 2.00mm CLIK-Mate connector system consists of SMT PCB receptacles, crimp housings and crimp contacts with a low insertion force tuning fork design. These CLIK-Mate connectors are ideal for use in applications that require a connector with robust features and a high pin count that occupies less space

Product Information

Connector 1 Number of Rows : 1
Connector 1 Number of Ways : 2
Current Rating : 1.5 A
Voltage Rating : 100 Vrms ac/dc
Series : CLIK-Mate
Connector 1 Housing Gender : Female
Cable Type : Round
Connector 2 Number of Rows : 1
Sheath Colour : Black
Connector 1 Terminal/Contact Gender : Male
Connector 2 Number of Ways : 2
Contact Plating : Tin
Pitch : 1.5mm
Connector 2 Terminal/Contact Gender : Male
Operating Temperature Range : -25 → +85 °C
Connector 2 Housing Gender : Female
Cable Length : 600mm
rohs : RoHS Certificate of Compliance
Series Number : 15135
