Thalassa PLM IP66 Wall Box, PET, Grey, 647 x 436 x 250mm

Schneider Electric

Product Information

Better World Product:
Yes
External Width:
436mm
IP Rating:
IP66
Series:
PanelSeT
Colour:
Grey
Gland Plate:
No
Chassis Plate:
No
Transparent Door:
No
External Depth:
250mm
Door Lock Type:
Double Bar
Body Material:
Polyethylene Terephthalate
Mounting plate:
No
Standards/Approvals:
IEC 62208, RoHS, UL, REACH
External Height:
647mm
Fixing Kit:
No
Product Type:
Wall Box
IK Rating:
IK10
Internal Mount Type:
Panel
Ratings:
IP66
Material:
Fiberglass/Polyester
RoHS Status:
ROHS3 Compliant
Thickness:
-
Area (L x W):
437in² (2821cm²)
Container Type:
Enclosure
Material Flammability Rating:
-
Package:
Box
Size / Dimension:
25.472" L x 17.165" W (647.00mm x 436.00mm)
standardLeadTime:
7 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Weight:
-
Color:
Gray
Series:
-
Height:
9.843" (250.00mm)
Design:
Cover Included
RoHs Compliant
Checking for live stock

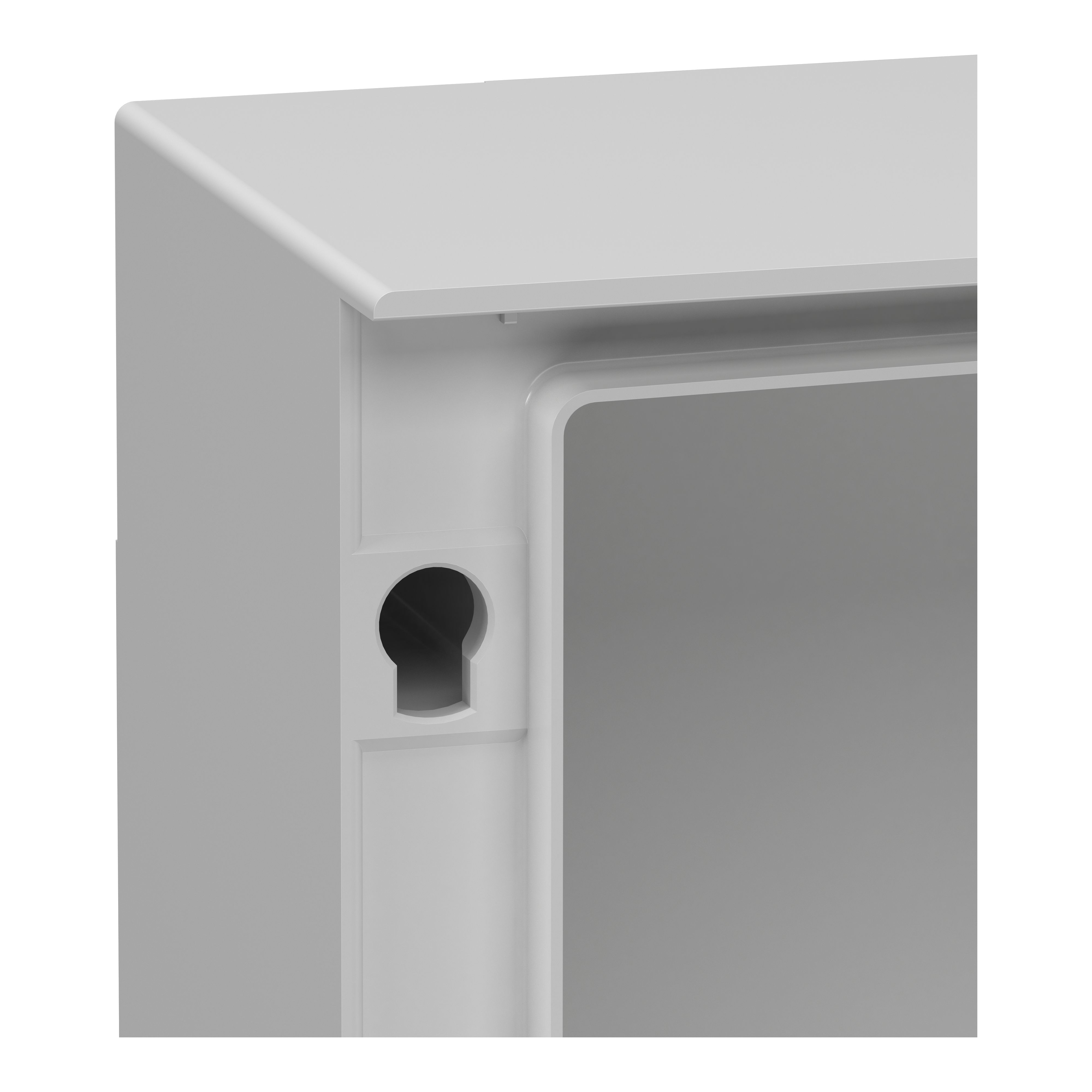

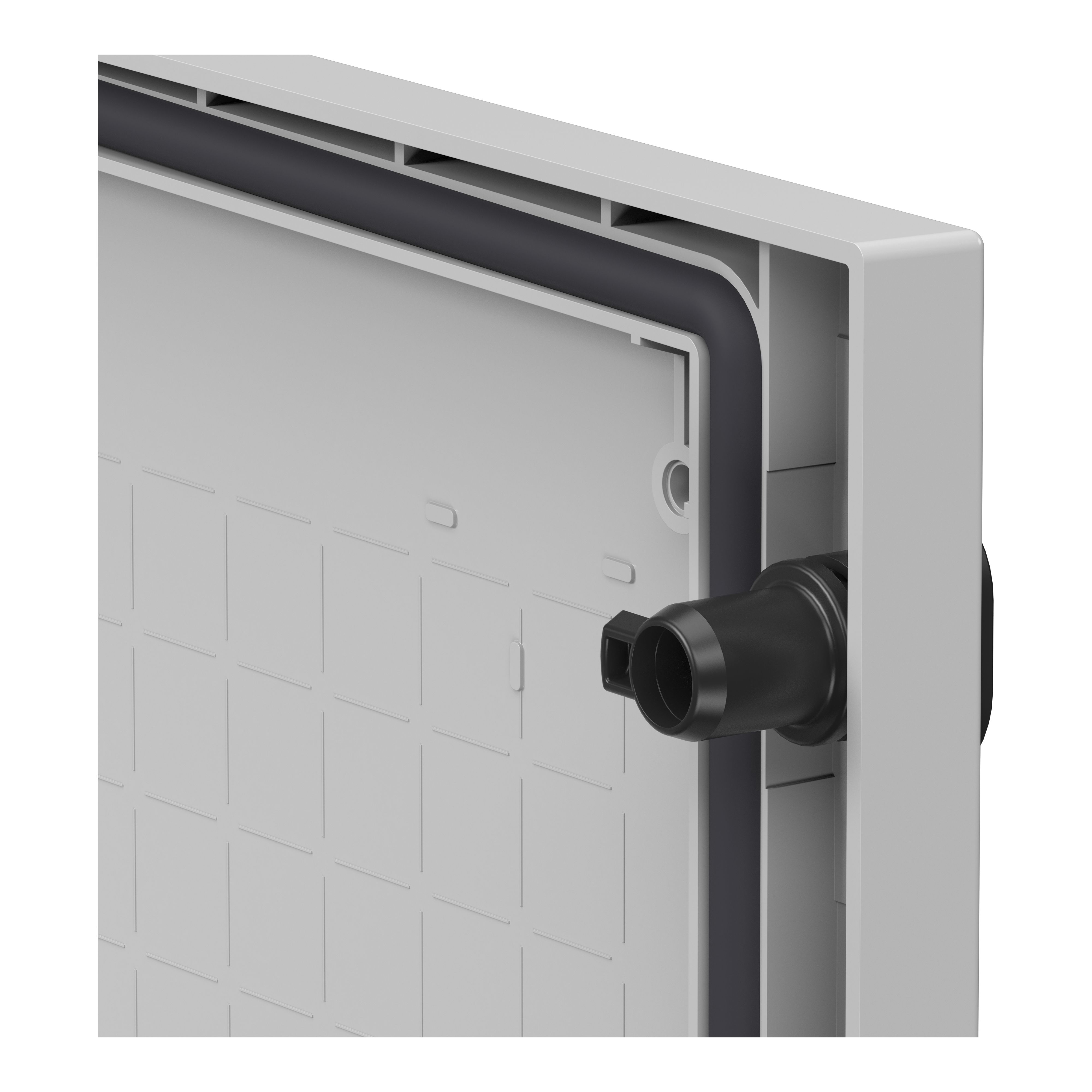

The Schneider Electric NSYPLM64G is a high-performance grey wall box that provides superior protection for sensitive electronic components in challenging environments. Constructed from robust, fibreglass-reinforced polyester, this monobloc unit offers exceptional resistance to corrosion and harsh industrial chemicals. Its compact 647x436x250mm frame is fully insulated to ensure electrical safety, making it a reliable solution for outdoor power distribution and specialised control systems.

Why Should You Buy the Product?

This Schneider Electric NSYPLM64G wall box provides maximum equipment security with its IP66 and IK10 ratings, ensuring complete protection against heavy water jets and high-impact physical force. Its durable fibreglass construction guarantees a maintenance-free, long-lasting housing that outperforms traditional metal boxes in corrosive or coastal settings.

  • Corrosion Resistance: The polyester body is immune to rust, making it ideal for outdoor/marine use.
  • Maximum Safety: Features Class II electrical insulation to prevent any risk of electric shock.

Feature Highlights & Applications Areas

  • Key Features:
  • IP66 Protection: Fully sealed against dust and high-pressure water ingress.
  • IK10 Impact Rating: Exceptional resistance to physical impact and mechanical stress.
  • Wide Temperature Tolerance: Operates reliably from -40°C up to +80°C.
  • Locking System: Equipped with two 3mm double-bar locks for secure access control.
  • Uses:
  • Industrial Automation: Housing for PLCs and control circuitry in factory settings.
  • Infrastructure: Protection for instrumentation in public utility and water treatment plants.
  • Harsh Environments: Ideal for coastal, chemical, or outdoor solar installations.

pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Universal Enclosures Catalogue(Technical Reference)
pdf icon
Datasheet NSYPLM64G(Technical Reference)
pdf icon
Green Premium Ecolabel(Technical Reference)
