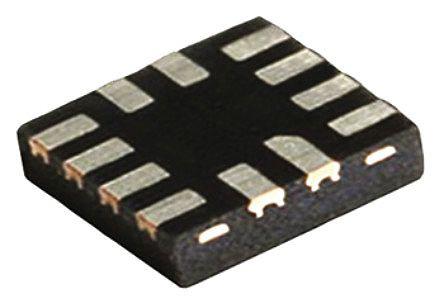

Fairchild Semiconductor FXLA0104QFX, Voltage Level Shifter, 3-State, 1.1 → 3.6 V, 12-Pin UMLP

FXLA0104QFX Fairchild Semiconductor , Voltage Level Shifter, 3-State, 1.1 → 3.6 V, 12-Pin UMLP
Fairchild Semiconductor

Product Information

Maximum Low Level Output Current:
/µA
Maximum High Level Output Current:
-4µA
Dimensions:
2 x 1.7 x 0.55mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
1.1 V
Logic Function:
Voltage Level Translator
Output Type:
3 State
Height:
0.55mm
Width:
1.7mm
Length:
2mm
Package Type:
UMLP
Logic Family:
FXLA
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Maximum Operating Temperature:
85 °C
Pin Count:
12
Number of Elements per Chip:
1
HTSUS:
8542.39.0001
Package:
Bulk
Series:
*
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Voltage Level Shifter 3-State 1.1 → 3.6 V 12-Pin UMLP manufactured by Fairchild Semiconductor. The manufacturer part number is FXLA0104QFX. On the other hand, it is featured with /µa of max. low level output current. While a -4µa of maximum high level output current. The given dimensions of the product include 2 x 1.7 x 0.55mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 1.1 v. The primary function of logic includes voltage level translator. Furthermore, it has a3 state output. In addition, the height is 0.55mm. Furthermore, the product is 1.7mm wide. Its accurate length is 2mm. The package is a sort of umlp. The logic family is fxla. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. It has a maximum operating temperature of 85 °c. It contains 12 pins. It consists of 1 elements per chip. It is assigned with possible HTSUS value of 8542.39.0001. It is shipped in bulk package . The product is designated with the ear99 code number.

pdf icon
FXLA0104, Low-Voltage Dual-Supply 4-Bit Voltage Translator with Configurable Voltage Supplies and Signal Levels, 3-State Outputs, and Auto Direction Sensing(Technical Reference)
