Pulse Electronics E8144-B02022-L
Product Information

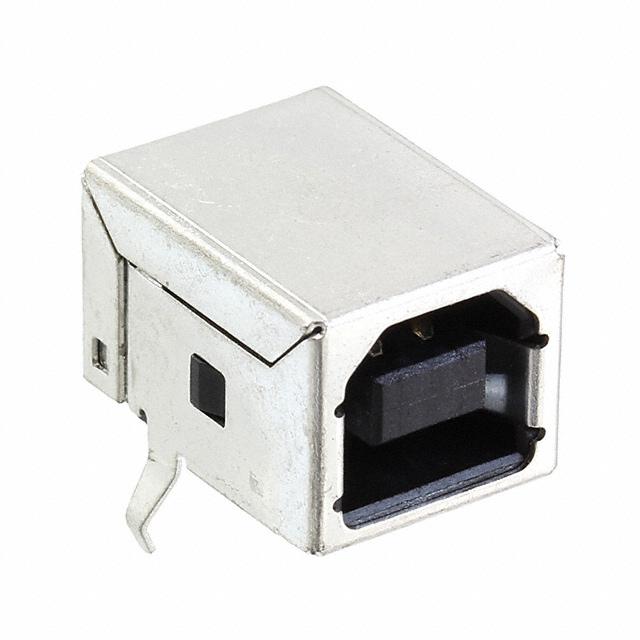

The E8144-B02022-L by Pulse Electronics is a versatile and durable USB-B (USB Type-B) receptacle connector for USB connections, offering a safe and efficient interface for various electronic devices. Its through-hole, right-angle design provides flexibility and ease of installation in space-constrained applications.
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Horizontal
Operating Temperature:
-40°C ~ 85°C
Shell/Shielding Material:
Copper Alloy
standardLeadTime:
11 Weeks
Shielding:
Shielded
Voltage - Rated:
30VAC
Specifications:
-
Insulation Color:
Black
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Tray
Gender:
Receptacle
Connector Type:
USB-B (USB TYPE-B)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Termination:
Solder
Mating Cycles:
1500
Current Rating (Amps):
1A
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
-
Number of Contacts:
4
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search E8144-B02022-L on website for other similar products.
We accept all major payment methods for all products including ET23565588. Please check your shopping cart at the time of order.
You can order Pulse Electronics brand products with E8144-B02022-L directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in USB, DVI, HDMI Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Pulse Electronics E8144-B02022-L. You can also check on our website or by contacting our customer support team for further order details on Pulse Electronics E8144-B02022-L.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23565588 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Pulse Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23565588.
Yes. We ship E8144-B02022-L Internationally to many countries around the world.
The Pulse Electronics E8144-B02022-L is a high-performance USB-B (USB Type-B) receptacle connector for numerous electronic gadgets and applications. This connector features a 4-position through-hole configuration with a right-angle design, offering flexibility and convenience in PCB mounting. It provides a compact, durable, standardized solution for connecting USB Type-B devices. Its design and features make it suitable for a wide range of applications, ensuring reliable connectivity and efficient use of space on the PCB.
The E8144-B02022-L USB-B receptacle connector boasts a compact and sturdy construction, making it ideal for space-constrained applications. Its through-hole design enables secure and reliable soldering onto the PCB, ensuring a robust electrical connection.
This connector is specifically designed to support USB Type-B connections. USB Type-B is commonly used for connecting peripheral devices, including printers, scanners, and external hard drives to computers or other host devices. The Pulse Electronics E8144-B02022-L ensures compatibility with USB Type-B cables, providing a reliable and standardized interface.
With its right-angle configuration, the E8144-B02022-L connector offers a convenient solution for applications with limited space or a low-profile design. This right-angle orientation allows for flexibility in PCB layout and enables more efficient use of available space within the device.
The through-hole mounting style of this connector facilitates secure attachment to the PCB. Through-hole mounting involves inserting the connector pins through pre-drilled holes on the PCB and soldering them on the opposite side, providing mechanical stability and durability. This method is commonly used in applications where solid mechanical support is required.
The Pulse Electronics E8144-B02022-L’s Wide Application Range:
The Pulse Electronics E8144-B02022-L USB-B receptacle connector can be used in various electronic devices, including printers, scanners, external storage devices, industrial equipment, and more. Its compact size, right-angle design, and through-hole mounting make it versatile for various electronic configurations.
