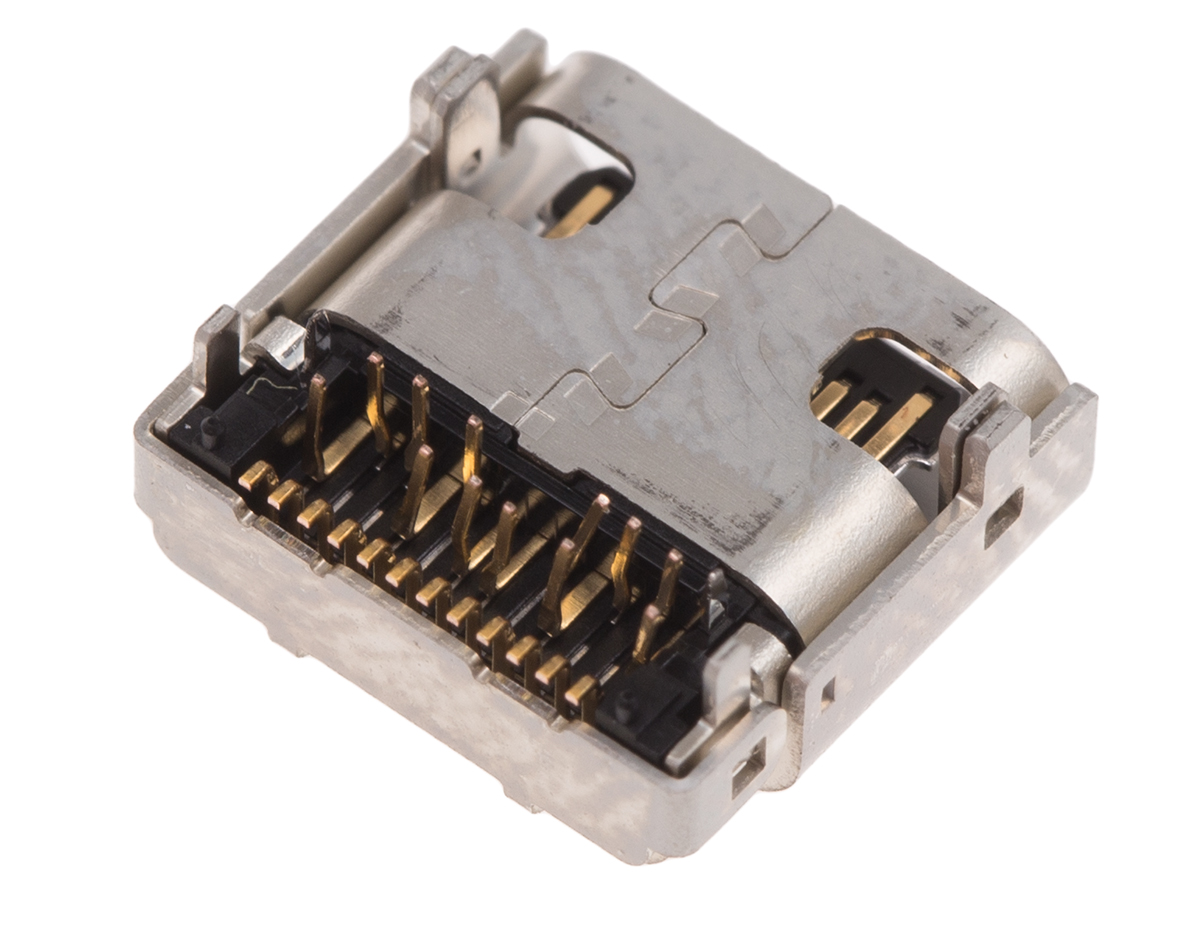

JST Right Angle Type C USB Connector Receptacle, Surface Mount

Enrgtech Part No: ET14108283
|
Manufacturer Part No:
UBC-R112-56C-7ATS(HF)
|
Manufacturer: JST

UBC-R112-56C-7ATS-HF- JST Right Angle Type C USB Connector Receptacle, Surface Mount

Product Information

USB Version:

3.1

Mounting Type:

Surface Mount

Voltage Rating:

20.0 V

Gender:

Female

USB Type:

Termination Method:

Solder

Number of Ports:

Minimum Operating Temperature:

-25.0°C

Series:

Maximum Operating Temperature:

+85°C

Body Orientation:

Right Angle

Checking for live stock

The JST UBC-R112-56C-7ATS(HF) is a high-performance USB Type C receptacle designed for reliable board connectivity in modern electronics. This connector features a right-angle body orientation and surface-mount termination, making it ideal for compact and space-constrained PCB applications that require a low-profile connection. Specified for USB 3.1 standards, it delivers fast data transfer capabilities and efficient power delivery with a robust 20.0V voltage rating. Its reliable, halogen-free construction ensures dependable operation across a wide industrial temperature range, from -25.0°C to +85°C.

The Practical Benefits of the JST UBC-R112-56C-7ATS-HF- Connector

The USB Type C receptacle offers universal compatibility and a fully reversible plug, significantly simplifying the end-user experience and eliminating connection frustration. The surface-mount form factor enables highly automated, high-volume PCB assembly, thereby reducing manufacturing costs and improving production throughput for next-generation devices.

Top Functional Highlights & Key Uses of the UBC-R112-56C-7ATS-HF- Connector

USB Type-C Receptacle: Provides a modern, reversible, and multi-functional interface.
Right-Angle/Surface Mount (SMT) Design: Optimal for saving vertical board space in compact products.
USB 3.1 Compliant: Supports high-speed data transfer rates.
Robust Temperature Range: Operates reliably from -25°C to +85°C.
Key Uses: Integration into smartphones, portable audio, industrial controllers, and other compact IoT and computing peripherals.
