Molex 67298-4090 Type A USB Connector, USB 2.0, Right Angle

Enrgtech Part No: ET13893721
|
Manufacturer Part No:
67298-4090
|
Manufacturer: Molex

67298-4090 Molex Type A USB Connector, USB 2.0, Right Angle

Product Information

Hazardous Area Certification:

USB Specification:

USB 2.0

Orientation:

Right Angle

Series:

67298

USB Type:

USB Type A

Minimum Operating Temperature:

0?C

Current:

1.5A

Number of Ports:

Standards/Approvals:

Voltage:

30V

Contact Material:

Phosphor Bronze

Termination Type:

Solder

warehouse-1

45 - In Stock

Ships in 5-7 business days

Each

Quantity

Unit Price (ex VAT)

Price

£ 1.24

£ 1.06

£ 15.90

£ 1.03

£ 51.50

Mfr Part No:

67298-4090

Seller:

Molex (warehouse-1)

Origin:

Warranty:

Manufacturer

Data Code:

ET13893721

Order Today!

From: United Kingdom

Est Ship Date: 05 Jun, 2026

Est Fastest Delivery: 09 Jun, 2026

Quantity Quantity

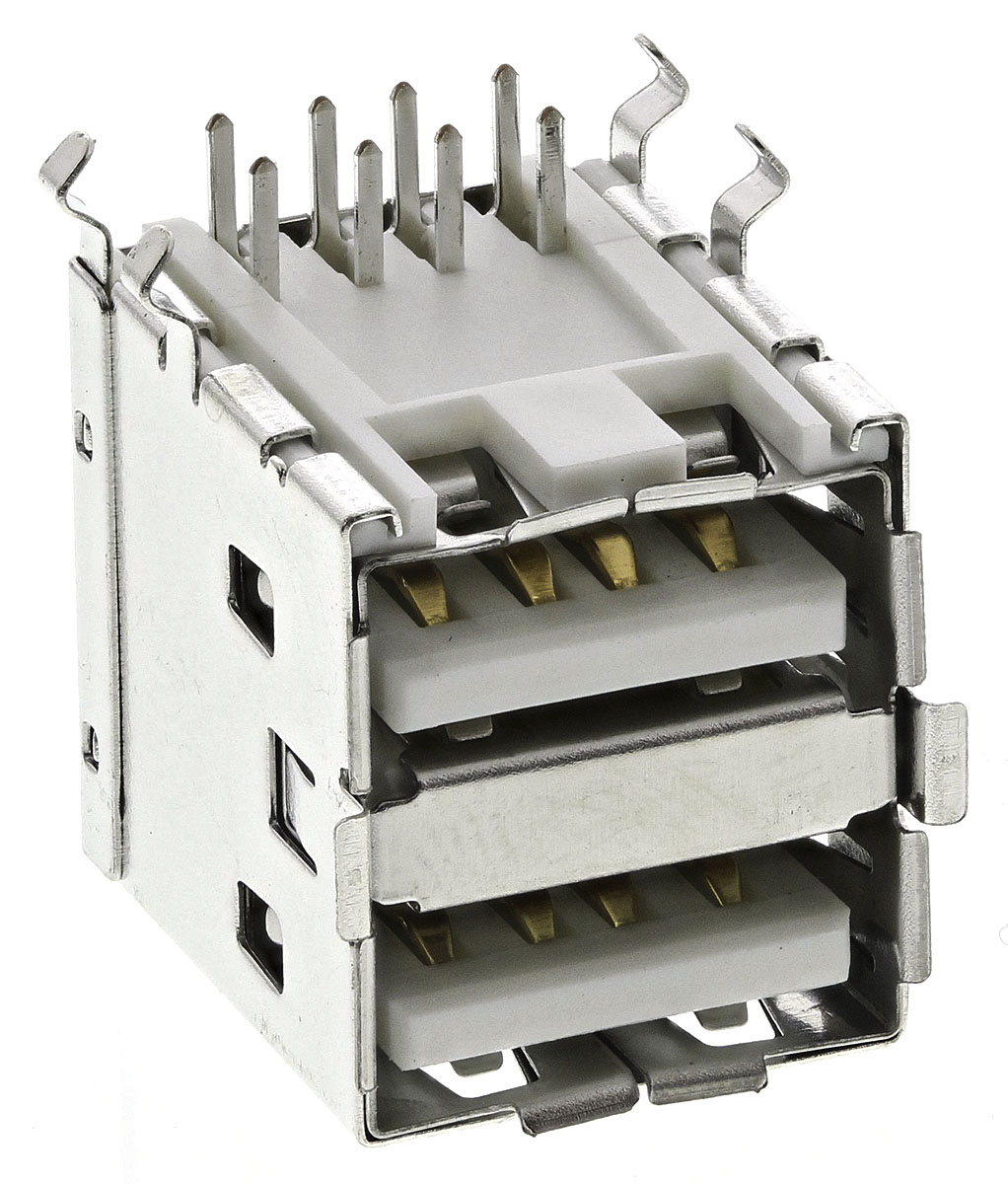

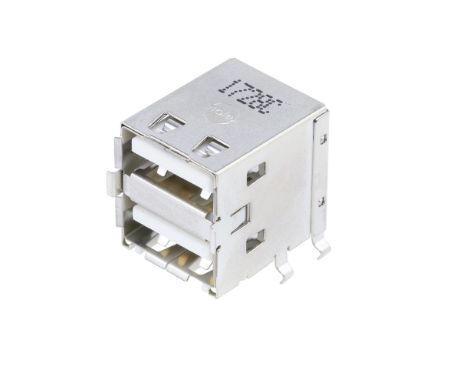

The Molex 67298-4090 is a high-quality, dual-stacked USB 2.0 Type A connector designed for efficient PCB integration. This shielded connector features a right-angle orientation to optimise space in compact electronic assemblies. It supports reliable data transmission and power delivery for diverse peripheral devices. The through-hole mounting ensures a robust mechanical connection to the circuit board. Its white housing and gold-plated contacts provide both aesthetic appeal and superior conductivity for long-term industrial or consumer use.

Product Advanced Features & Technical Specifications

Connector Type: USB 2.0 Type A Receptacle (Female).
Configuration: Dual-stacked, 2-port design for increased connectivity density.
Mounting Style: Through-hole with right-angle body orientation.
Shielding: Fully shielded to protect signals against electromagnetic interference (EMI).
Contact Material: Phosphor bronze with gold (Au) flash plating for durability.
Electrical Ratings: Rated for 1.5A current and 30V DC voltage.
Mechanical Features: Includes kinked board locks for secure positioning during soldering.
Operating Temperature: Reliable performance ranging from 0°C to +50°C.

Why Buy This Product - Benefits

This Molex 67298-4090 dual-stacked USB connector saves valuable PCB space while providing two ports. Its shielded design ensures stable data transfers in noisy environments.

Maximises port density without increasing the board's horizontal footprint.
Provides high-speed signal integrity through advanced shielding and gold plating.
Ensures secure mounting with specialised mechanical board locks.

Datasheet(Technical Reference)

USB A Type Dual Stacked Through Hole PCB Receptacle Right Angle with kinked board lock - Drawing(Technical Reference)

Datasheet(Datasheets)
